New Holland 7635

Last Updated: June 2024

Overview

The New Holland 7635 is a utility tractor that offers robust performance with its 95 hp Iveco turbocharged diesel engine. It has a three-point hitch and an open center hydraulic system. Designed for a variety of tasks, this model comes with a 24-speed partial power shift transmission, granting it flexibility in handling different working conditions with 24 forward and 12 reverse gears. The tractor presents options in both 2WD and 4WD configurations, with a wheelbase of 92.2 inches for the 2WD and 91.1 inches for the 4WD and weighing between 6834 and 7936 pounds. Providing convenience with power steering, the tractor operates with a liquid-cooled engine, ensuring efficiency in rigorous work. Equipped to handle demanding tasks on the farm or field, the 7635 was manufactured between 1996 and 1999 and is recognized for its reliability and strength.

Key Specifications

Category: Utility

Power Output: 95

Transmission: Partial power shift

Drive Type: 2WD

Operating Weight: 6834 to 7936

Fuel Type: Diesel

Image Gallery

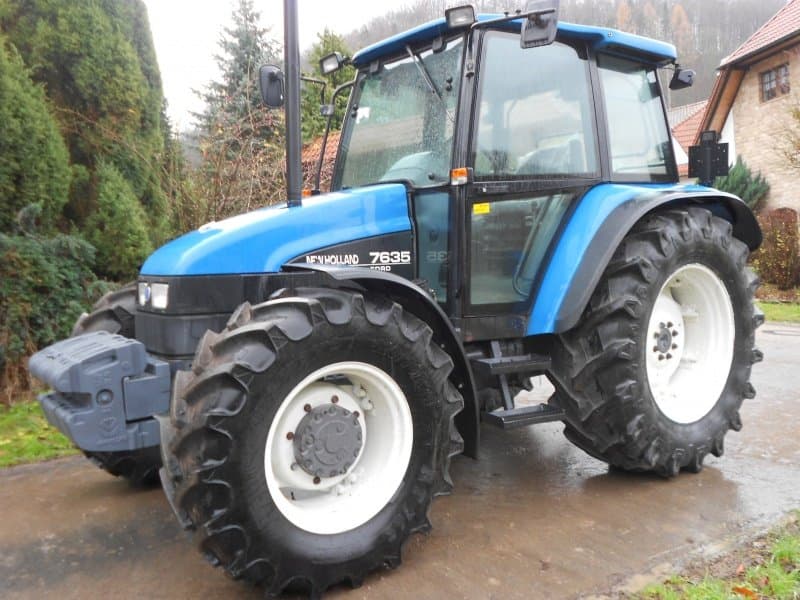

New Holland 7635 Tractor

New Holland 7635 vs. Similar Tractors

Power Output

Above Average

Greater than 80% of similar tractors.

Operating Weight

Excellent

Greater than 91% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iveco
Model: 8045.25
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: 8-valve
Fuel Type: Diesel
Induction Type: Turbocharged
Cylinders: 4
Displacement (ci): 238
Bore (in): 4.094
Stroke (in): 4.527
Rated RPM: 2500
Power Output (hp): 95

Transmission

Type: Partial power shift
Forward Gears: 24
Reverse Gears: 12
Total Gears: -

Dimensions

Length (in): -
Width (in): 72.6
Height (in): 105.5 (ROPS), 97.5 (Cab)
Operating Weight (lb): 6834 to 7936

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Power
Coolant Capacity (qts): 14.8 (ROPS), 16.9 (Cab)
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: 1999
Hitch Type: Three-Point Hitch
Hitch Category: -
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric Starter
Brake Type: -
Hydraulic System Type: Open center
