New Holland 3010

Last Updated: June 2024

Overview

The New Holland 3010 is a utility tractor that was offered in both two-wheel and four-wheel drive options. It was manufactured by New Holland in Queretaro, Mexico from 1996 to 2003. This tractor is equipped with a 2.7 L three-cylinder diesel engine with liquid cooling and natural aspiration. It features an 8 forward and 2 reverse gear constant mesh transmission and a rated RPM of 2500. The engine produces 55 horsepower. It also has power steering and wet disc brakes enhancing the utility tractor's use for various agricultural tasks. With its power and features, the New Holland 3010 caters to the needs of farmers looking for a reliable workhorse capable of carrying out a multitude of tasks around the farm.

Key Specifications

Category: Utility

Power Output: 55

Transmission: Constant mesh

Drive Type: 4x2 2WD / 4x4 MFWD 4WD

Operating Weight: 4956 (2WD) / 5705 (4WD)

Fuel Type: Diesel

Image Gallery

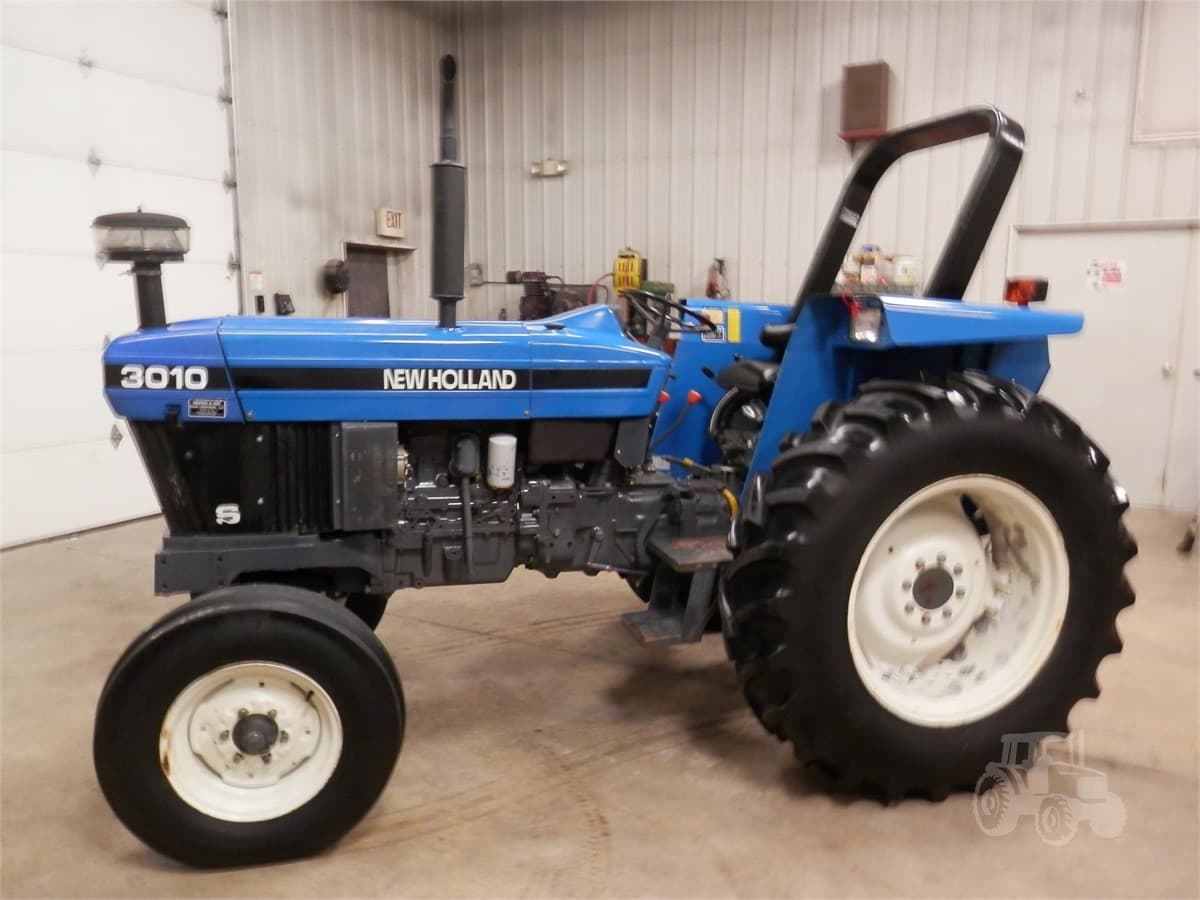

New Holland 3010 Tractor

New Holland 3010 vs. Similar Tractors

Power Output

Average

Greater than 53% of similar tractors.

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: New Holland
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 164.8
Bore (in): 3.94
Stroke (in): 4.53
Rated RPM: 2500
Power Output (hp): 55

Transmission

Type: Constant mesh
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 135.8 (2WD) / 126 (4WD)
Width (in): 74.8 (2WD) / 78.7 (4WD)
Height (in): 90.9 (2WD ROPS) / 92.1 (4WD ROPS)
Operating Weight (lb): 4956 (2WD) / 5705 (4WD)

Power Take-Off (PTO)

PTO Type: Independent
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: -
Drive Type: 4x2 2WD / 4x4 MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): 11.6
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: 2003
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Two-post ROPS
Starter Type: Electric
Brake Type: Wet disc
Hydraulic System Type: Gear pump
