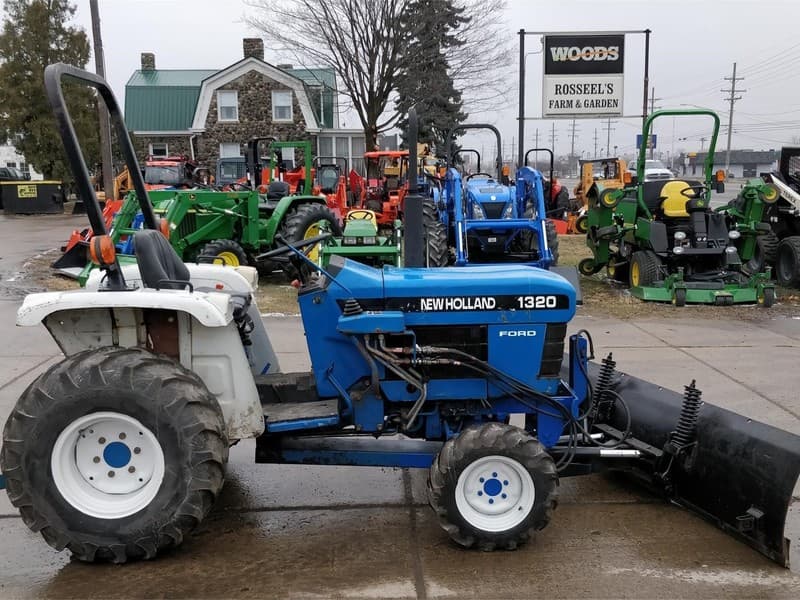

New Holland 1320

The New Holland 1320 is a compact utility tractor that was manufactured between 1987 and 1998. It was equipped with a Shibaura J823 three-cylinder diesel engine that produced 20 horsepower at 2500 RPM. The engine displacement was 77.3 cubic inches, with a bore and stroke of 3.22 and 3.15 inches respectively. This tractor came in both 2WD and 4WD options and features a choice of a gear or hydrostatic transmission with 9 forward and 3 reverse gears for the gear type and infinite forward and reverse gears for the hydrostatic type. It had a wheelbase of 63 inches, and it was relatively compact, with a length of 112.4 inches, a width of 58.7 inches, and a height with ROPS of 82.3 inches. Operating weights were 2101 pounds for the 2WD model and 2229 pounds for the 4WD variant. The tractor had agricultural and lawn/turf tire options to suit different applications and environments. Designed with practicality in mind, the tractor also featured a Category 1 three-point hitch and an open-center hydraulic system. Despite being a robust and reliable machine for various tasks, the detailed specifics for many of its subsystems and components remain unknown.
