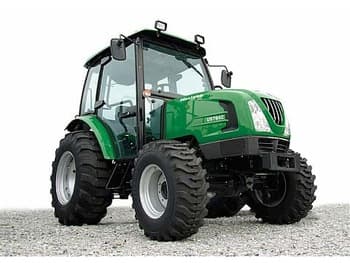

Montana U5784C

Last Updated: June 2024

Overview

The Montana U5784C is a utility tractor designed for a variety of tasks typical in a farm setting. This model features a four-wheel-drive chassis (4x4 MFWD 4WD) that enhances traction and performance in various terrains. The tractor is powered by a Mitsubishi S4S-D diesel engine with 4 cylinders and a liquid-cooling system. It provides a power output of 57 horsepower with a total displacement of 203.3 cubic inches, ensuring adequate power for a range of agricultural applications. The hydraulic power steering facilitates easier handling and control. The synchro shuttle transmission comes with 16 forward and reverse gears, allowing for a range of speeds suitable for many different tasks. The tractor's overall length is 135.2 inches, width is 66.9 inches, and height with the cab is 95.5 inches. With standard Ag tires sized 9.5-20 in the front and 16.9-24 in the rear, and a ground clearance of 14.1 inches, the U5784C is capable of navigating rough terrain. Equipped with an electric starter, the tractor is easy to start. Note that this description assumes the inclusion of standard equipment and features.
Show more...

Key Specifications

Category: Utility

Power Output: 57

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 5,225

Fuel Type: Diesel

Montana U5784C vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Poor
Greater than 2% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4S-D
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
203.3
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
57

Transmission

Type
Synchro shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
135.2
Width (in)
66.9
Height (in)
95.5 (cab)
Operating Weight (lb)
5,225

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydraulic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
9.5
Rear Tire Diameter (in)
24
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
