Montana U4984

Last Updated: June 2024

Overview

The Montana U4984 is a versatile utility tractor designed to handle a variety of tasks on different terrains. Equipped with a 4x4 MFWD 4WD chassis and powered by a 47 horsepower Mitsubishi S4QL diesel engine, it provides sufficient power and traction for demanding applications. Its engine displacement is 152.9 cubic inches and operates at a rated RPM of 2600, signifying a reliable and efficient performance. The tractor's hydraulic power steering aids in easier maneuverability, while the 16-speed synchro shuttle transmission offers a wide range of speed options for both forwarding and reversing tasks. With an operating weight of 4266 lbs, and a length of 135.2 inches, width of 65.75 inches, and height of 101.4 inches (with ROPS), the Montana U4984 is robust yet compact enough for various jobs around a farm.

Key Specifications

Category: Utility

Power Output: 47

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 4266

Fuel Type: Diesel

Image Gallery

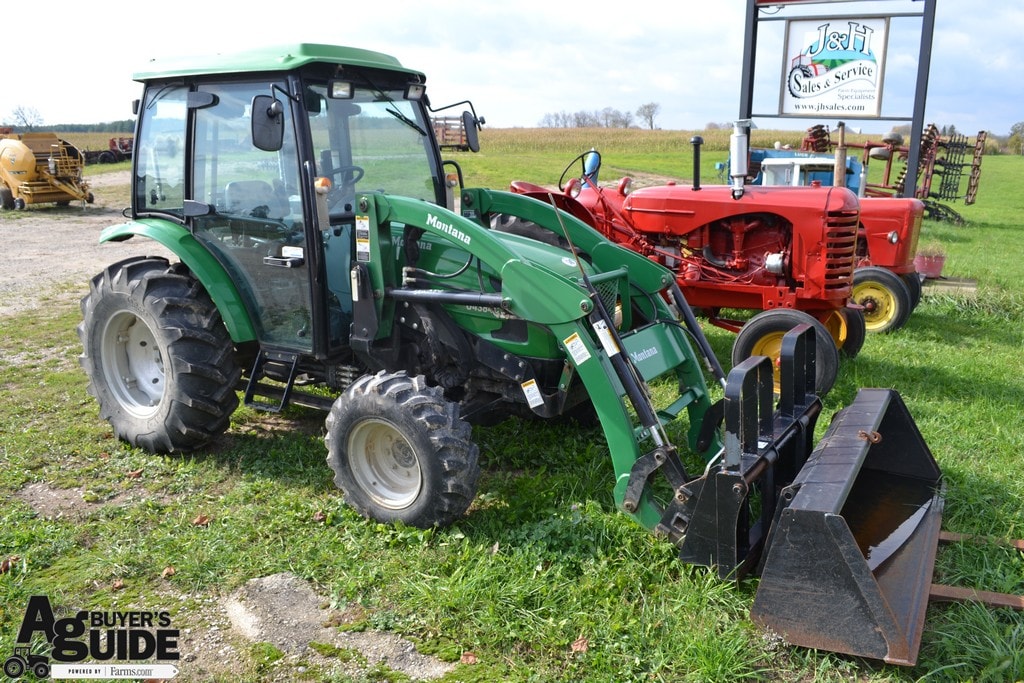

Montana U4984 Tractor

Montana U4984 vs. Similar Tractors

Power Output

Average

Greater than 45% of similar tractors.

Operating Weight

Average

Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: S4QL
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 152.9
Bore (in): -
Stroke (in): -
Rated RPM: 2600
Power Output (hp): 47

Transmission

Type: Synchro shuttle
Forward Gears: 16
Reverse Gears: 16
Total Gears: 32

Dimensions

Length (in): 135.2
Width (in): 65.75
Height (in): 101.4
Operating Weight (lb): 4266

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydraulic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
