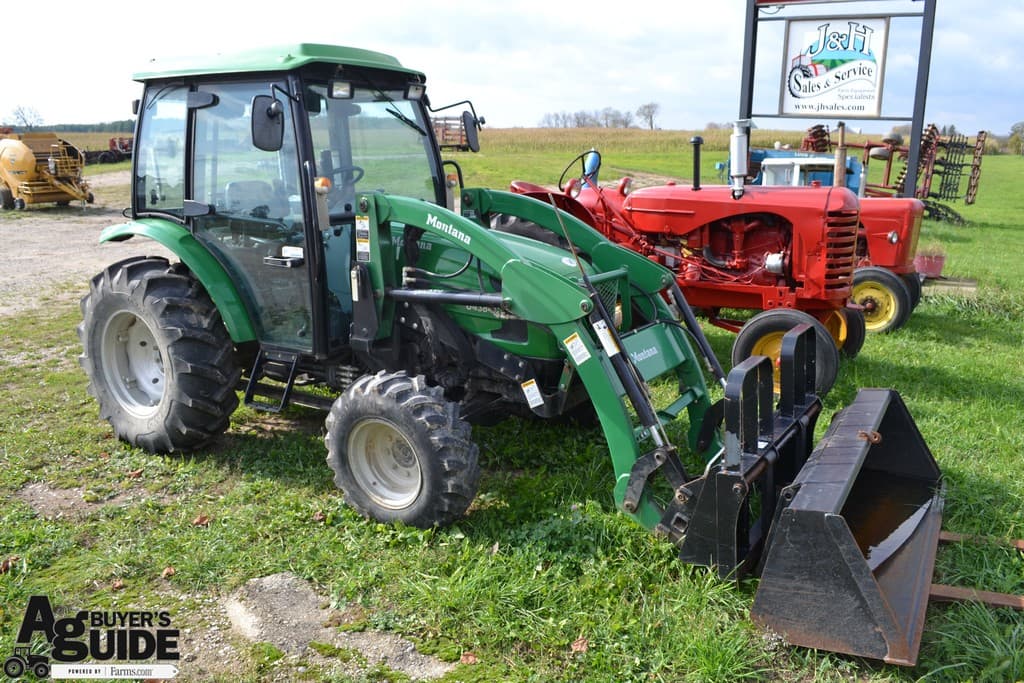

Montana U4384

Last Updated: June 2024

Overview

The Montana U4384 is a utility tractor designed for a variety of tasks around the farm. It is equipped with a 41 horsepower (30.6 kW) Mitsubishi S4QS diesel engine, which provides ample power for everyday agricultural work. The 141 cubic inches (2.3 L) liquid-cooled engine is paired with a 16-speed synchro shuttle transmission, offering a broad range of speeds suitable for different conditions and implements. This tractor comes with a 4x4 MFWD 4WD chassis, ensuring good traction across different terrains. The hydraulic power steering facilitates maneuverability, even with heavy loads. The tractor's operating weight is 4,266 lbs (1935 kg), and with a wheelbase of 76 inches (193 cm), it offers stability without being overly bulky. Given its dimensions—135.2 inches in length, 61.8 inches in width, and a height of 100.75 inches when equipped with a Rollover Protection System (ROPS)—the U4384 maintains a reasonable footprint while providing the necessary height clearance for varied farm operations. From its utility-oriented design, it can be inferred that this model aims to meet the multipurpose needs of the modern farmer.
Show more...

Key Specifications

Category: Utility

Power Output: 41

Transmission: Synchro shuttle

Drive Type: 4WD

Operating Weight: 4266

Fuel Type: Diesel

Montana U4384 vs. Similar Tractors

Power Output
Average
Greater than 38% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4QS
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
4
Displacement (ci)
141
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
41

Transmission

Type
Synchro shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
135.2
Width (in)
61.8
Height (in)
100.75 (with ROPS)
Operating Weight (lb)
4266

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydraulic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
