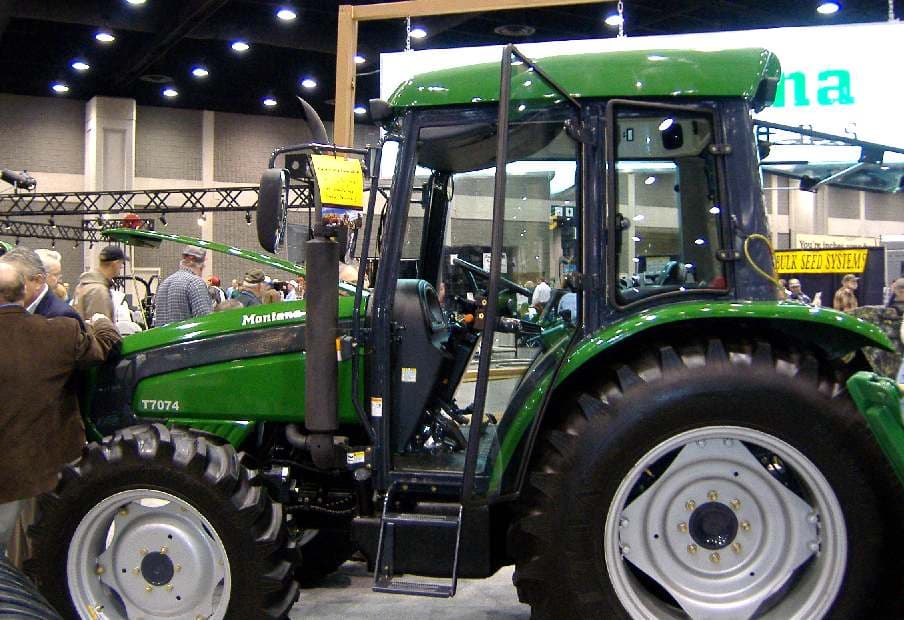

Montana T7074

Last Updated: June 2024

Overview

The Montana T7074 is a utility tractor powered by a 70 hp John Deere 3029T diesel engine. It features a liquid-cooling system and a sync shuttle transmission with 16 forward and reverse gears. With a weight of 6,660 lbs and a wheelbase of 83.2 inches, this tractor offers a stable platform for various tasks. The operating dimensions, including a length of 159.4 inches, a width of 77.1 inches, and a height of 102.3 inches, make it suitable for a range of applications. The tractor's front and rear tire specifications suggest it's equipped for agricultural work, supporting typical farm activities such as tilling, planting, and hauling. The power steering and open operator station provide a comfortable working environment with minimal effort to maneuver the tractor. The open center hydraulic system complements its usability in various tasks. Its 12-volt electric starting system ensures reliable ignition in varied conditions, and the Category II hitch allows for versatile implement attachments.
Show more...

Key Specifications

Category: Utility

Power Output: 70

Transmission: Sync shuttle

Operating Weight: 6660

Fuel Type: Diesel

Montana T7074 vs. Similar Tractors

Power Output
Average
Greater than 64% of similar tractors.
Operating Weight
Average
Greater than 51% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
3029T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
179
Bore (in)
4.19
Stroke (in)
4.33
Rated RPM
2500
Power Output (hp)
70

Transmission

Type
Sync shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
159.4
Width (in)
77.1
Height (in)
102.3
Operating Weight (lb)
6660

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Power
Coolant Capacity (qts)
9.7
Front Tire Diameter (in)
24
Front Tire Width (in)
-
Rear Tire Diameter (in)
30
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Open
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
Open Center
