Montana C5264

Last Updated: June 2024

Overview

The Montana C5264 is a utility tractor equipped with a UTB/Universal 2302.053 engine. This tractor features a 4-wheel drive chassis with hydrostatic power steering and an 8-speed manual transmission. It has a diesel, 3-cylinder, liquid-cooled engine with a displacement of 172.1 cubic inches. The engine has a bore and stroke of 4.016 inches and 4.528 inches, respectively, and is rated at 52 horsepower with a rated RPM of 2400. It comes with 7.5R front and 14.9R28 rear agricultural tires. The tractor is compatible with a rear-type II/I hitch, but the specifics of its lifting capacity are not detailed. It has the capability to start with 12 volts, implying an electric starting system. The Montana C5264 is designed to handle the diverse needs of utility farming and meets the demands of a variety of agricultural tasks.

Key Specifications

Category: Utility

Power Output: 52

Transmission: Manual

Drive Type: 4WD

Fuel Type: Diesel

Image Gallery

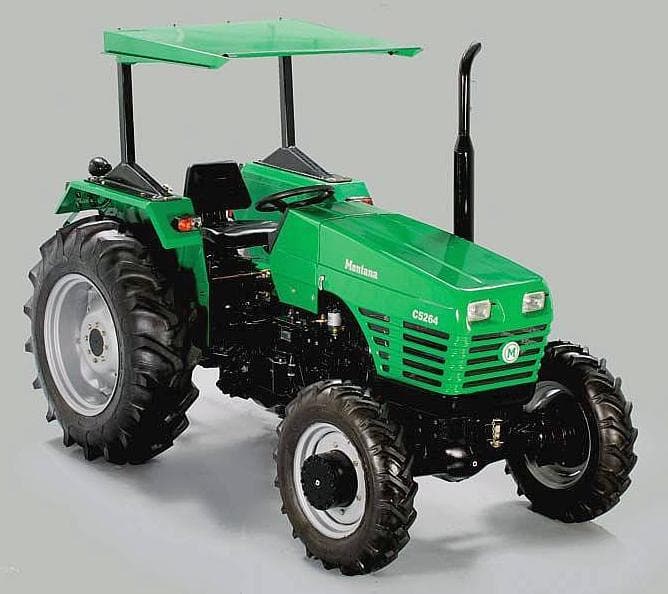

Montana C5264 Tractor

Montana C5264 vs. Similar Tractors

Power Output

Average

Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer: UTB/Universal
Model: UTB/Universal 2302.053
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 172.1
Bore (in): 4.016
Stroke (in): 4.528
Rated RPM: 2400
Power Output (hp): 52

Transmission

Type: Manual
Forward Gears: 8
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): -
Width (in): -
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 28
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: II/I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric (assumed from "Engine - Starter volts: 12")
Brake Type: -
Hydraulic System Type: -
