Montana 4940

Last Updated: June 2024

Overview

The Montana 4940 is a compact utility tractor designed to offer reliable service for a variety of tasks. Powered by a 49 horsepower Mitsubishi S4QL diesel engine with indirect injection and a liquid-cooling system, it matches durability with performance. It comes equipped with a 16-speed sync shuttle transmission, making it versatile for various types of work that require different speed settings. With a 4x4 MFWD 4WD chassis and power steering, this tractor offers improved traction and easier maneuverability across different terrains. It sports agricultural tires with front specs of 9.5-20 and rear specs of 13.6-28, suitable for farm use. This model has a robust weight ranging from 4,321 to 5,202.8 pounds, and it presents a significant presence with a ground clearance of 14.37 inches. The dimensions of the 4940 are considerable, standing 94.61 inches tall with a length of 125.67 inches and a wheelbase of 74.8 inches.

Key Specifications

Category: Utility

Power Output: 49

Transmission: Sync Shuttle

Drive Type: MFWD 4WD

Operating Weight: 4321 to 5202.8

Fuel Type: Diesel

Image Gallery

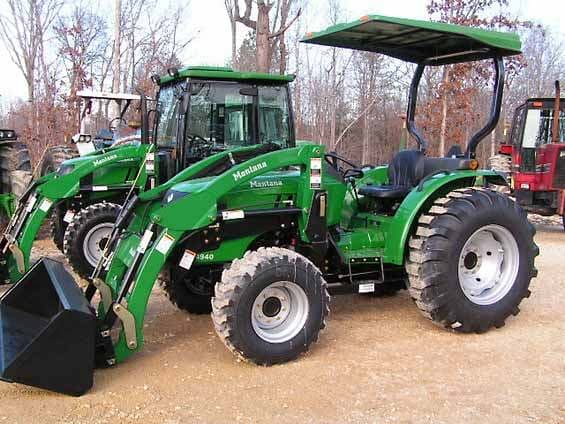

Montana 4940 Tractor

Montana 4940 vs. Similar Tractors

Power Output

Average

Greater than 47% of similar tractors.

Operating Weight

Above Average

Greater than 87% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mitsubishi
Model: S4QL
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Indirect Injection
Cylinders: 4
Displacement (ci): 152.86
Bore (in): 3.46
Stroke (in): 4.06
Rated RPM: 2600
Power Output (hp): 49

Transmission

Type: Sync Shuttle
Forward Gears: 16
Reverse Gears: 16
Total Gears: -

Dimensions

Length (in): 125.67
Width (in): -
Height (in): 94.61
Operating Weight (lb): 4321 to 5202.8

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: MFWD 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): 20
Front Tire Width (in): 9.5
Rear Tire Diameter (in): 28
Rear Tire Width (in): 13.6
Front/Rear Rim Diameter (in): -
Tire Type: Ag Front: 9.5-20, Ag Rear: 13.6-28
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: 12 volts
Brake Type: -
Hydraulic System Type: -
