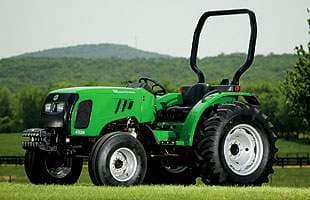

Montana 4320

Last Updated: June 2024

Overview

The Montana 4320 Compact Utility Tractor is a versatile and practical tractor well-suited for a variety of tasks around a small farm or homestead. Its powerful Mitsubishi S4QS 4-cylinder, liquid-cooled, diesel engine provides 43 horsepower and is coupled with a 16-speed sync shuttle transmission. Featuring power steering, the 4320 offers ease of handling. The chassis configuration is described as 4x2 2WD, suggesting that this model may not be as well suited for heavy-duty traction jobs as a 4WD tractor but is still capable for a range of general activities. With an engine displacement of 141.03 cubic inches and running at 2,600 RPM, this machine is designed to undertake typical tasks requiring a compact utility tractor. The height of the tractor with the cab is 93.7 inches, and with an operating weight of 5063.9 lbs, it's a solid, stable tractor. Pneumatic tires sized 8.3-20 for the front and 12.4-28 for the rear provide sufficient grip for general-purpose activities, and the tractor's ground clearance of 13.39 inches allows for good navigability over various terrain.
Show more...

Key Specifications

Category: Utility

Power Output: 43

Transmission: Sync Shuttle

Drive Type: 2WD

Operating Weight: 5063.9

Fuel Type: Diesel

Montana 4320 vs. Similar Tractors

Power Output
Average
Greater than 40% of similar tractors.
Operating Weight
Average
Greater than 43% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4QS
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect Injection
Cylinders
4
Displacement (ci)
141.03
Bore (in)
3.45
Stroke (in)
3.74
Rated RPM
2600
Power Output (hp)
43

Transmission

Type
Sync Shuttle
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
125.67
Width (in)
-
Height (in)
93.7 (cab)
Operating Weight (lb)
5063.9

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
8.3
Rear Tire Diameter (in)
28
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category I
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
-
