Montana 3940

Last Updated: September 2024

Overview

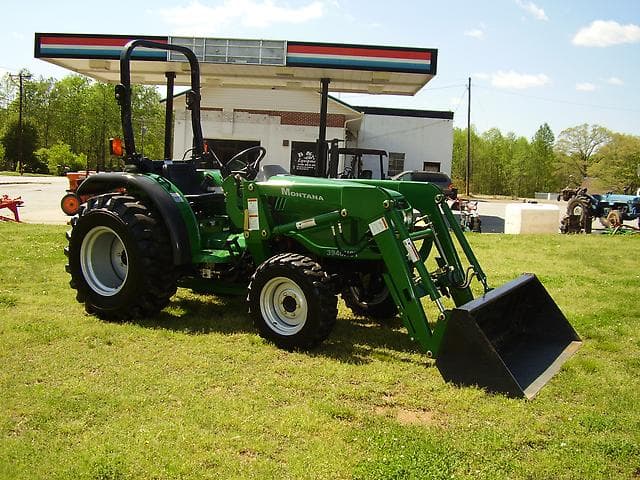

The Montana 3940 is a utility tractor built for versatility and efficiency. It features a 4x4 MFWD chassis with power steering, making it easy to maneuver in various farm conditions. The tractor is powered by a Mitsubishi S4L2 engine, which is a 4-cylinder, liquid-cooled diesel engine with indirect injection. This engine produces 39 hp at 2700 rpm, offering average power for its class while running at a very high rpm.

The Montana 3940 comes with a hydrostatic transmission that provides infinite forward and reverse gears, allowing for smooth operation and precise speed control. It has a compact design, measuring 132 inches in length and 87.51 inches in height, with a wheelbase of 66.2 inches. The tractor weighs 2,955 lb, which is on the lighter side for its category. It's equipped with agricultural tires both front and rear, and features a Category I hitch for attaching various implements. Additional features include a dual dry element air cleaner, glow plugs for easier starting in cold weather, and a 12-volt electric starter.
Show more...

Key Specifications

Category: Utility

Power Output: 39 hp (29.1 kW)

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 2955 lb (1340 kg)

Fuel Type: Diesel

Montana 3940 vs. Similar Tractors

Power Output

The Power Output for the Montana 3940 is Average. It is greater than 35% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 1.5K+ tractors in our database)

Operating Weight

The Operating Weight for the Montana 3940 is Below Average. It is greater than 24% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 1.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Montana 3940 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Montana 3940 is Above Average. It is greater than 90% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4L2
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
4
Displacement
110 ci (1.8 L)
Bore
3.07 in (78.0 mm)
Stroke
3.62 in (91.9 mm)
Rated RPM
2700
Power Output
39 hp (29.1 kW)

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
