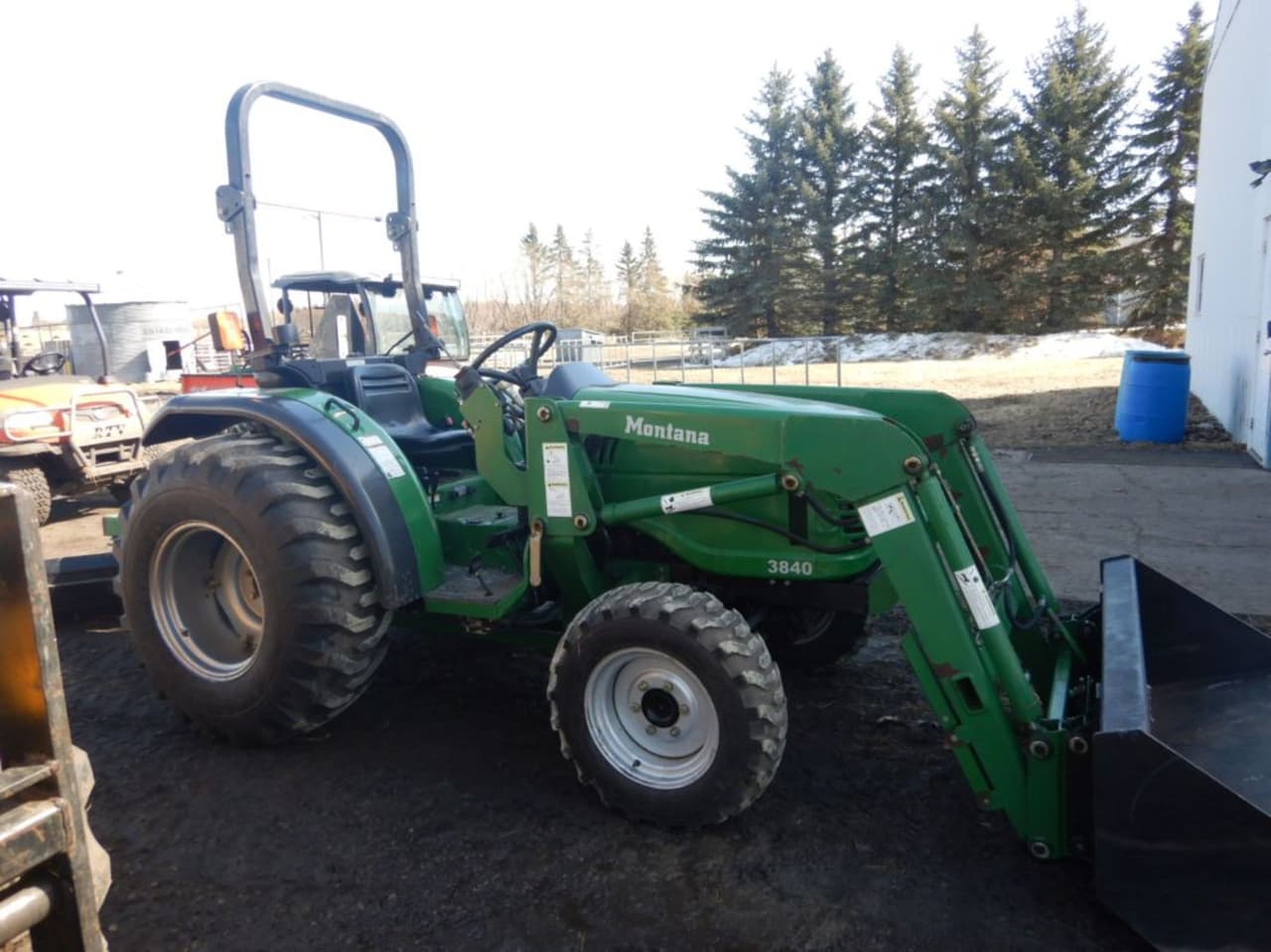

Montana 3840

Last Updated: June 2024

Overview

The Montana 3840 is a robust compact utility tractor that's equipped to handle a range of agricultural tasks. Fitted with a powerful 38 hp Mitsubishi S4L2 four-cylinder diesel engine, this tractor delivers responsive power and performance. The liquid-cooled engine with indirect injection keeps it running efficiently even under strenuous work conditions, and the dual dry element air cleaner protects the engine from dust and debris. It operates at a rated 2700 RPM and is designed with a displacement of 109.84 cubic inches, with a bore and stroke of 3.07 inches by 3.62 inches. This tractor offers a 4x4 MFWD 4WD chassis configuration, providing enhanced traction and control in various terrain conditions. Its power steering facilitates maneuverability and ease of operation. Coupled with a 12-speed sync shuttle transmission, the Montana 3840 allows for smooth transitions between its 12 forward and 12 reverse gears. It displays an operating weight of 3418 pounds and measures 130.3 inches in length, with a height of 87.51 inches with ROPS deployed, ensuring stability and comfort during use. The tractor's wheelbase stands at 63 inches, contributing to its balanced ride, and it offers a ground clearance of 13.2 inches, which is ample for clearing obstacles and uneven ground. It is equipped with 8.0-16.0 front and 12.4-24.0 rear agricultural tires, selected for their durability and field performance. While specific details such as total gear count, hydraulic system type, PTO speed, and hitch lift capacity could not be provided, the Montana 3840's combination of features makes it a strong performer for a range of mid-size agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 38

Transmission: Sync shuttle

Drive Type: 4WD

Operating Weight: 3418

Fuel Type: Diesel

Montana 3840 vs. Similar Tractors

Power Output
Average
Greater than 35% of similar tractors.
Operating Weight
Below Average
Greater than 29% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
4
Displacement (ci)
109.84
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2700
Power Output (hp)
38

Transmission

Type
Sync shuttle
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
130.3
Width (in)
-
Height (in)
87.51
Operating Weight (lb)
3418

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
8
Rear Tire Diameter (in)
24
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 volt
Brake Type
-
Hydraulic System Type
-
