Montana 3440

Last Updated: June 2024

Overview

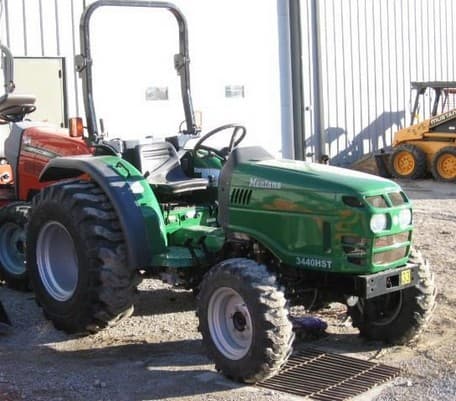

The Montana 3440 tractor, powered by a Daedong 3A165LG diesel engine, offers 32.5 horsepower with a displacement of 100.5 cubic inches. This liquid-cooled engine is indirect injection type and operates efficiently at a rated RPM of 2700. To meet the various demands of agricultural work, the Montana 3440 has a hydrostatic transmission that grants infinite gear choices both forward and reverse, making it highly flexible regardless of the task at hand. This model's dimensions include a wheelbase of 68.2 inches, a length of 132 inches, and a height with ROPS at 87.51 inches, while maintaining an operating weight of 2696 lbs. It exhibits a ground clearance of 13.2 inches, allowing for activities over varied terrain. Any specific utility or functionality of the Montana 3440 comes from its well-fitted hydraulic system, open center type, and rear Category I hitch with a 540 RPM PTO speed, essential for driving various implements.
Show more...

Key Specifications

Power Output: 32.5

Transmission: Hydrostatic

Operating Weight: 2696

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Daedong
Model
3A165LG
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect Injection
Cylinders
3
Displacement (ci)
100.5
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2700
Power Output (hp)
32.5

Transmission

Type
Hydrostatic
Forward Gears
Infinite
Reverse Gears
Infinite
Total Gears
-

Dimensions

Length (in)
132
Width (in)
-
Height (in)
87.51 (ROPS)
Operating Weight (lb)
2696

Power Take-Off (PTO)

PTO Type
Rear PTO 540 (1.375)
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
12 Volts
Brake Type
-
Hydraulic System Type
Open Center
