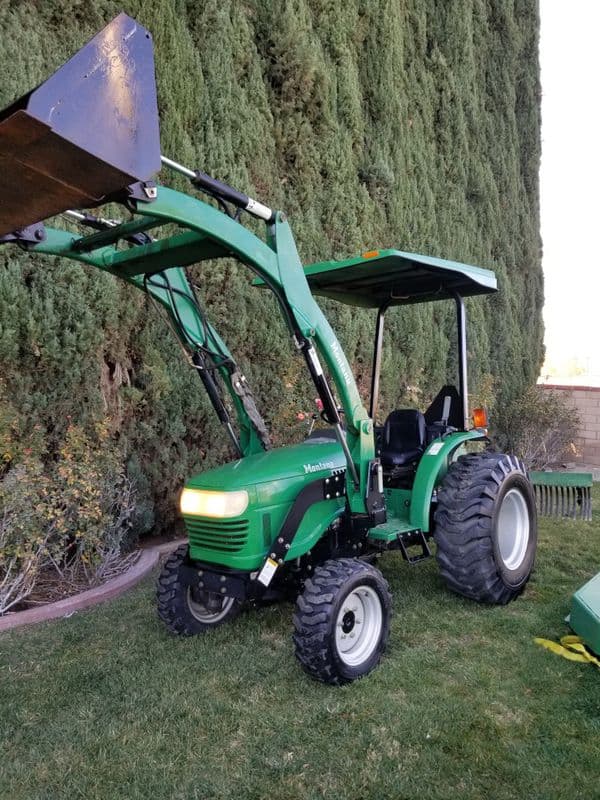

Montana 3240

Last Updated: June 2024

Overview

The Montana 3240 is a compact utility tractor that supports various tasks commonly needed on small farms or estates. Equipped with a robust 4x4 MFWD 4WD chassis, this tractor is designed to provide traction in a variety of conditions. Its power steering ensures ease of handling, while the sync shuttle transmission includes 8 forward and reverse gears, optimizing the machine's versatility and ease of use for a range of groundwork tasks. The engine is a 3-cylinder, 103.74 cubic inches, liquid-cooled diesel unit, built by Daedong, which generates 32 horsepower at 2600 RPM. The tractor has a durable build with an operating weight of 2659 lbs and includes agricultural tires, touting a front tire width of 7 inches and a rear tire width of 11.2 inches. Its overall length reaches 115.4 inches with a height of 94.1 inches, incorporating adequate ground clearance for a variety of agricultural activities.
Show more...

Key Specifications

Category: Utility

Power Output: 32

Transmission: Sync shuttle

Drive Type: 4WD

Operating Weight: 2659

Fuel Type: Diesel

Montana 3240 vs. Similar Tractors

Power Output
Below Average
Greater than 27% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Daedong
Model
3A165LG-2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
3
Displacement (ci)
103.74
Bore (in)
3.43
Stroke (in)
3.64
Rated RPM
2600
Power Output (hp)
32

Transmission

Type
Sync shuttle
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
115.4
Width (in)
-
Height (in)
94.1
Operating Weight (lb)
2659

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
7
Rear Tire Diameter (in)
-
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts inferred from starter volts)
Brake Type
-
Hydraulic System Type
-
