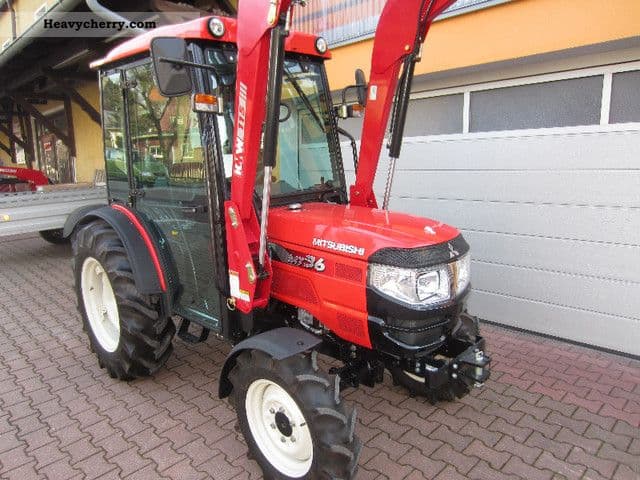

Mitsubishi MT36

Last Updated: June 2024

Overview

The Mitsubishi MT36 is a compact utility tractor that boasts a 36.2 horsepower diesel engine, with a displacement of 101.4 cubic inches and a rated RPM of 2600. It is designed with a 4x4 MFWD 4WD chassis, which implies it has a four-wheel drive capability with a mechanical front wheel drive. Steering is facilitated by a hydrostatic power system, enhancing the ease of maneuverability. Despite the presence of conflicting transmission data, it could possibly have an 8-speed synchronized shuttle, suggesting a total of 8 forward and reverse gears. However, there's uncertainty about whether a hydrostatic transmission with infinite forward and reverse range is installed instead. The tractor is equipped with a Three-Point Hitch Category 1, standard ag tires, and has an operating weight of approximately 2712 pounds at its heaviest. It spans 125.6 inches in length and 55.1 inches in width, with a significant height presented by the ROPS at 94.9 inches. This model appears to be well-fitted for various tasks in a utility capacity, although details on the year of manufacture are missing. The MT36 showcases Mitsubishi's commitment to efficient utility in the field through its design and capabilities, though complete specifications would help in providing a more precise utility profile for current users.
Show more...

Key Specifications

Category: Utility

Power Output: 36.2

Transmission: Unknown (discrepancy between "synchronized shuuttle" and "hydrostatic")

Drive Type: MFWD 4WD

Operating Weight: 2712 (assuming the highest weight specified is for normal operation)

Fuel Type: diesel

Mitsubishi MT36 vs. Similar Tractors

Power Output
Average
Greater than 33% of similar tractors.
Operating Weight
Below Average
Greater than 22% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L3L
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
naturally aspirated (assuming based on typical design for this engine type and category)
Cylinders
3
Displacement (ci)
101.4
Bore (in)
-
Stroke (in)
-
Rated RPM
2600
Power Output (hp)
36.2

Transmission

Type
Unknown (discrepancy between "synchronized shuuttle" and "hydrostatic")
Forward Gears
8 (assuming "synchronized shuuttle" data is primary)
Reverse Gears
8 (assuming "synchronized shuuttle" data is primary)
Total Gears
-

Dimensions

Length (in)
125.6
Width (in)
55.1
Height (in)
94.9 (assuming the tallest point provided is the significant height measurement)
Operating Weight (lb)
2712 (assuming the highest weight specified is for normal operation)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
MFWD 4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (unable to infer with high confidence based on code "45123")
Front Tire Width (in)
Unknown (unable to infer with high confidence based on code "45123")
Rear Tire Diameter (in)
24 (assuming the measurement specifies the tire diameter)
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Unknown (choices between ag, lawn/turf, but actual type within those categories unspecified)
Manufacture - End Year
-
Hitch Type
I (indicating a type of three-point hitch)
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS (inferred from "Rear Height (ROPS)" and "Mid Height (ROPS)")
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
