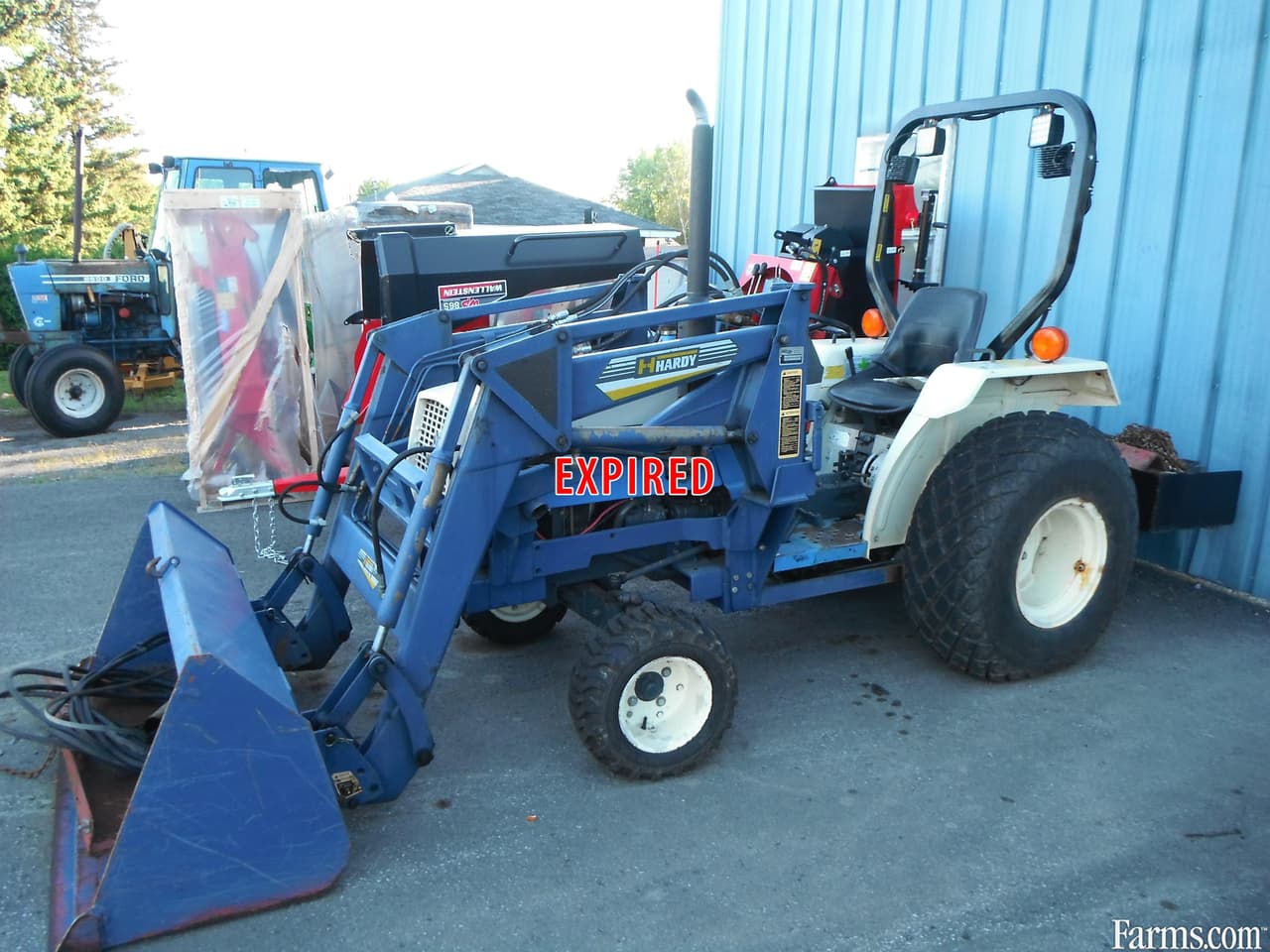

Mitsubishi MT210

Last Updated: June 2024

Overview

The Mitsubishi MT210 tractor is a 2WD tractor powered by a 21 hp Mitsubishi K3D diesel engine. This tractor is designed with a synchromesh transmission that includes 9 forward and 3 reverse gears, coupled with manual steering and a dry disc clutch. It has manual steering and a 4x2 chassis configuration, highlighting its utility for various tasks around the farm. The MT210 has a wheelbase of 60 inches and an operating weight of 1720 pounds, which combined with its 53.3 inches height and length of 102.4 inches, suggests a compact tractor suitable for smaller scale farming operations or as a versatile addition to a larger fleet. This particular model's engine has a displacement of 59.7 cubic inches and is liquid-cooled, with a rated RPM of 2700, ensuring adequate power for various tasks. It features a 12-volt electric starter, marking it as a convenient and easily operated piece of machinery.
Show more...

Key Specifications

Power Output: 21

Transmission: Synchromesh

Drive Type: 2WD

Operating Weight: 1720

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3D
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
59.7
Bore (in)
2.875
Stroke (in)
3.071
Rated RPM
2700
Power Output (hp)
21

Transmission

Type
Synchromesh
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
102.4
Width (in)
44.1
Height (in)
53.3
Operating Weight (lb)
1720

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category 1
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
