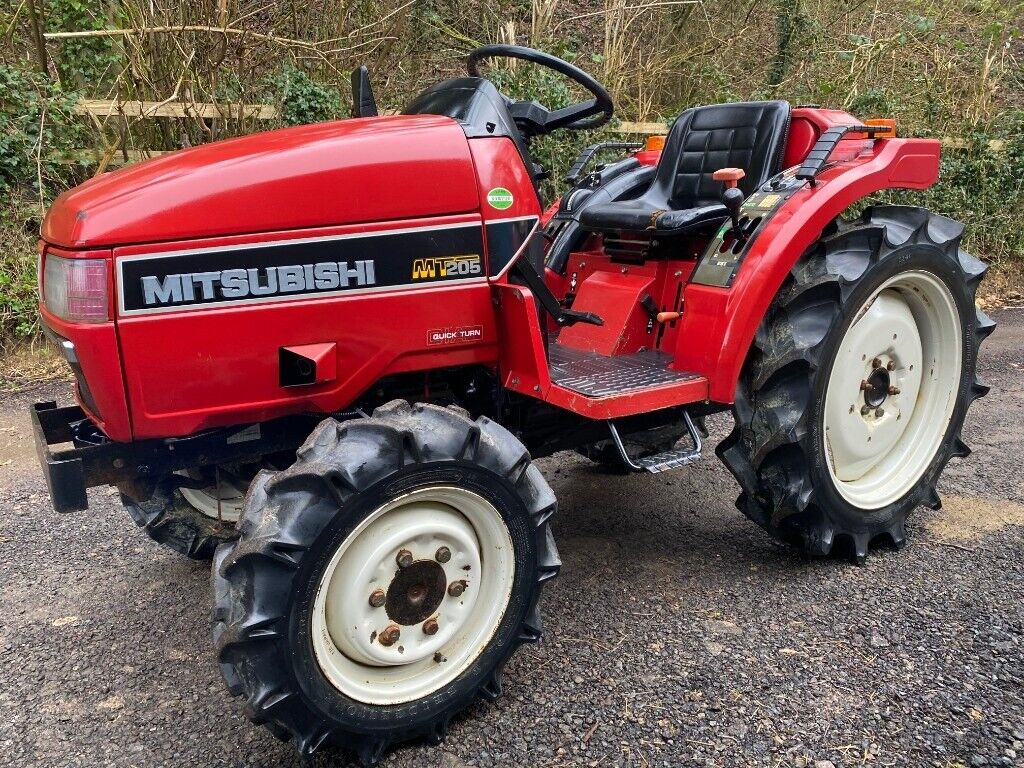

Mitsubishi MT205

Last Updated: June 2024

Overview

The Mitsubishi MT205 is a compact utility tractor, designed for various farming and landscaping tasks. Manufactured by Mitsubishi, it's equipped with a robust 20 horsepower engine that operates at a rated RPM of 2500. This particular model is powered by a Mitsubishi K3G diesel engine that features a cooling system that is liquid-cooled to maintain the engine temperature during prolonged operations. With a displacement of 75.4 cubic inches, the engine is capable of handling demanding tasks. The drive type is four-wheel drive (4WD) which is set in the chassis configuration of 4x4 MFWD. This optimizes the tractor's ability to maneuver and work efficiently in various terrains and conditions. It offers 8 forward and reverse gears, allowing the operator to select the appropriate speed for different types of work. The MT205 features a manual transmission and weighs 1808 pounds, which supports stability and traction. The tractor's dimensions are 106.3 inches in length, 45.5 inches in width, and 52.4 inches in height, with a ground clearance of 13 inches. This provides a good balance between size and utility, allowing it to operate in spaces where larger tractors would not fit while still performing substantial tasks. The electric starter ensures that the tractor starts up reliably.
Show more...

Key Specifications

Category: Utility

Power Output: 20

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1808

Fuel Type: Diesel

Mitsubishi MT205 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 14% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3G
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
3
Displacement (ci)
75.4
Bore (in)
3.228
Stroke (in)
3.071
Rated RPM
2500
Power Output (hp)
20

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
8
Total Gears
16

Dimensions

Length (in)
106.3
Width (in)
45.5
Height (in)
52.4
Operating Weight (lb)
1808

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
