Mitsubishi MT200

Last Updated: June 2024

Overview

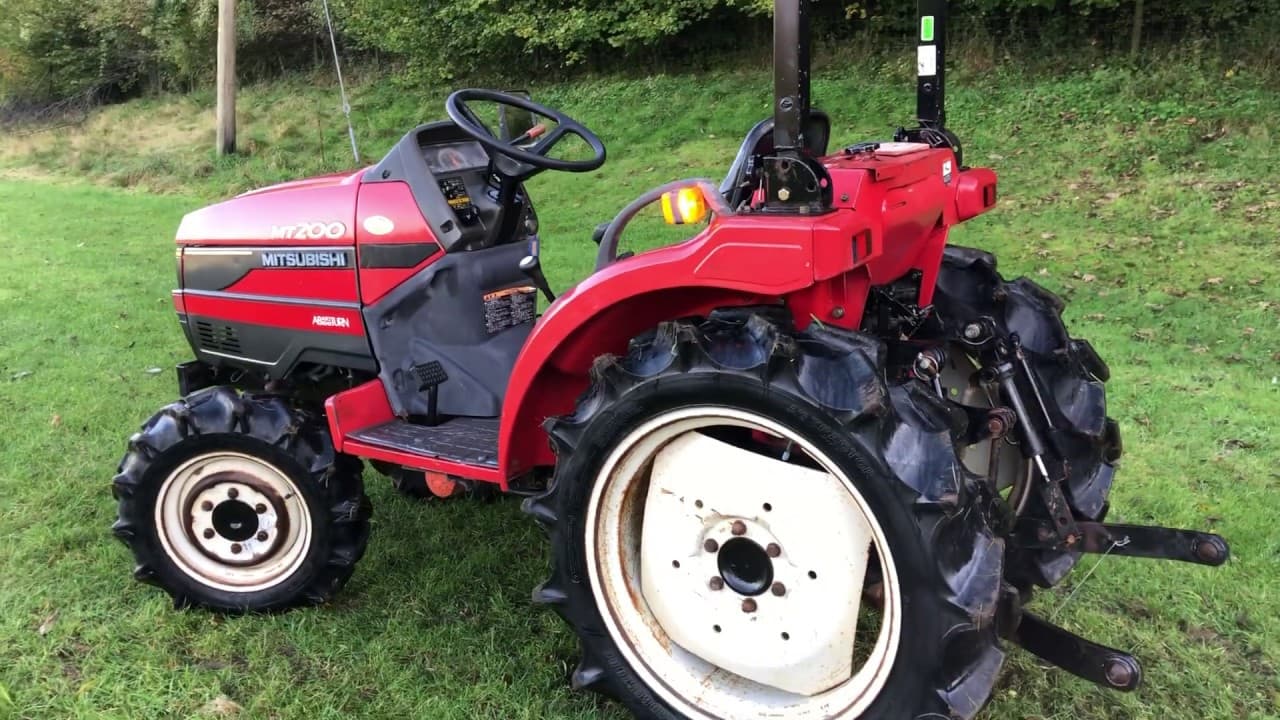

The Mitsubishi MT200 is a compact utility tractor that is well-suited for a variety of tasks around small farms and properties. It features a 20 horsepower, liquid-cooled, three-cylinder diesel engine that provides sufficient power for both light and moderately challenging jobs. The tractor comes with a 4x2 2WD chassis and is equipped with hydrostatic power steering, enhancing maneuverability. While the model has a gear transmission with 6 forward and 2 reverse speeds, there is mention of a hydrostatic transmission, but the type is not clearly defined, leading to some ambiguity. The tractor operating weight is 2,017 pounds and has an engine displacement of 68.7 cubic inches with a rated RPM of 2500. Featuring standard agricultural tires with front and rear measurements indicated as 5.00-12 and 9.5-16 (4WD) respectively. The dimensions of the Mitsubishi MT200 add to its utility, measuring at 106.5 inches in length, 46 inches in width, and a height of 82.3 inches with ROPS. These specifications suggest that the Mitsubishi MT200 is capable of handling a variety of tasks while being compact enough to navigate smaller spaces and easy to handle.
Show more...

Key Specifications

Category: Utility

Power Output: 20

Drive Type: 2WD

Operating Weight: 2017

Fuel Type: Diesel

Mitsubishi MT200 vs. Similar Tractors

Power Output
Poor
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Indirect injection
Cylinders
3
Displacement (ci)
68.7
Bore (in)
-
Stroke (in)
-
Rated RPM
2500
Power Output (hp)
20

Transmission

Type
-
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
106.5
Width (in)
46
Height (in)
82.3
Operating Weight (lb)
2017

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
