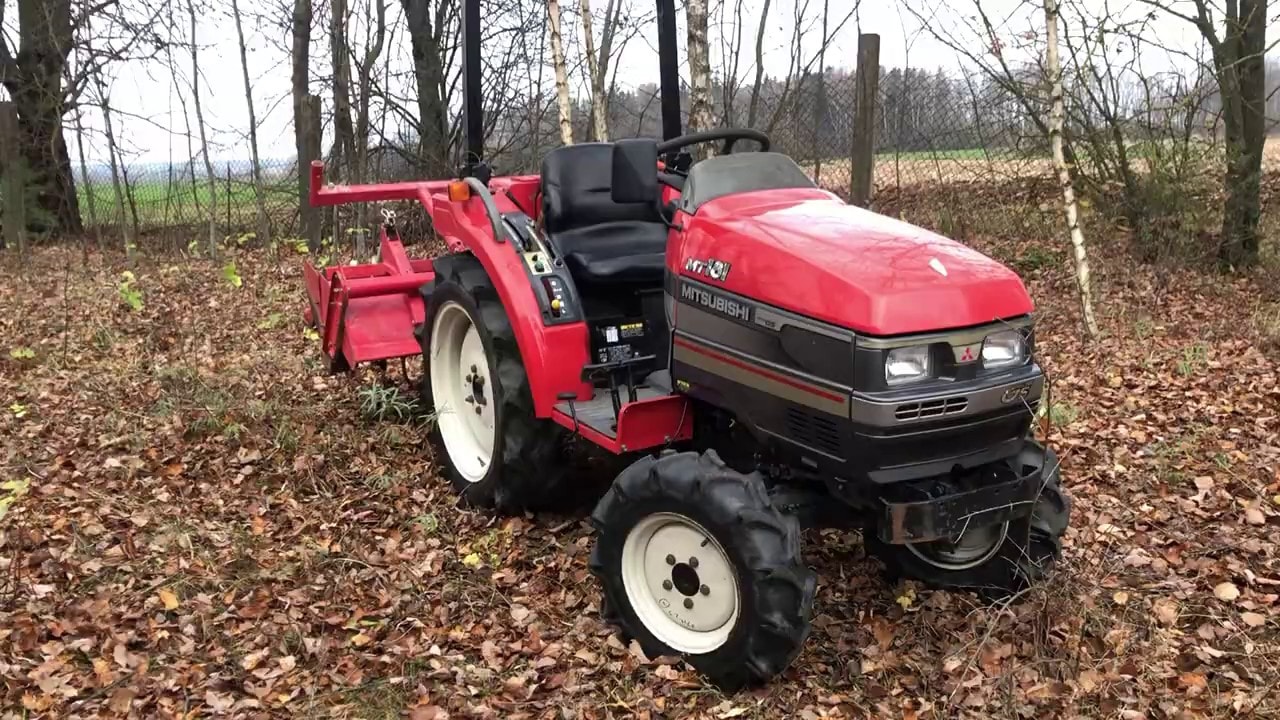

Mitsubishi MT181

Last Updated: June 2024

Overview

The Mitsubishi MT181 is a compact utility tractor known for its durability and versatility. With a powerful 17.7 horsepower Mitsubishi S3L diesel engine, it is well-equipped to handle a variety of tasks on a small farm or property. The liquid-cooled three-cylinder engine ensures consistent performance and longevity. The tractor features a 4WD chassis for improved traction in difficult terrain and a manual transmission with 6 forward gears and 3 reverse, allowing for a range of speeds suitable for various tasks. The manual steering provides precise control, though it may require more effort compared to power steering systems. This tractor's overall dimensions and weight indicate that it is relatively easy to maneuver and store, with a notable ground clearance for working in uneven fields. Overall, the Mitsubishi MT181 is a practical choice for those in need of a small, but capable tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 17.7

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1808

Fuel Type: Diesel

Mitsubishi MT181 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Below Average
Greater than 14% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
68.7
Bore (in)
3.081
Stroke (in)
3.091
Rated RPM
2500
Power Output (hp)
17.7

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
102.8
Width (in)
42.1
Height (in)
74
Operating Weight (lb)
1808

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
