Mitsubishi MT1601

Last Updated: June 2024

Overview

The Mitsubishi MT1601 is a compact utility tractor that offers a dependable diesel-powered engine in a small-frame design. Engineered for various tasks, this tractor features the robust Mitsubishi K3C three-cylinder, liquid-cooled diesel engine that provides 15.8 hp and is rated at 2400 RPM. Although details regarding the transmission specifics and hydraulic systems are not provided, the presence of gear transmission and standard agricultural tires indicate its readiness for a range of agriculture-related tasks. With multiple tread settings available for the front and rear tires on the 4WD version, the MT1601 can handle various terrains, providing a balance of performance and maneuverability.
Show more...

Key Specifications

Category: Utility

Power Output: 15.8

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1235 (2WD) / 1345 (4WD)

Fuel Type: Diesel

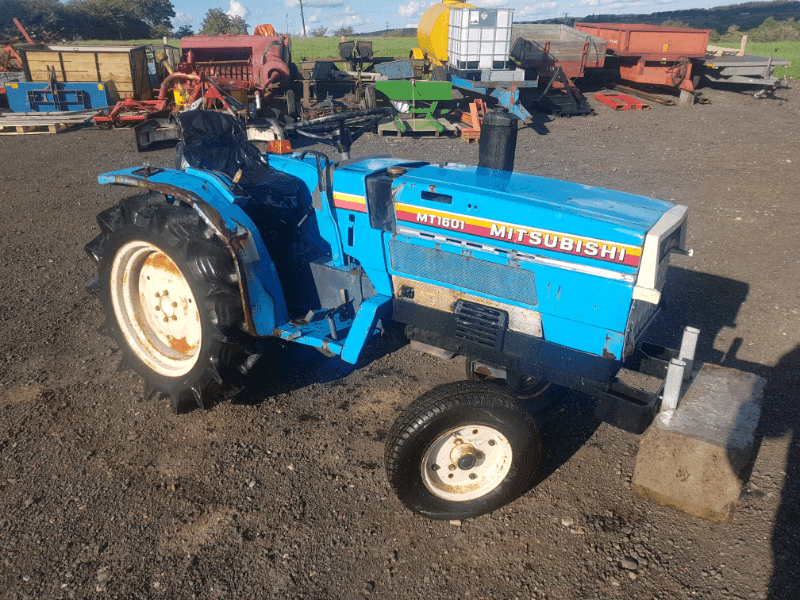

Image Gallery

Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor Mitsubishi MT1601 Tractor

Mitsubishi MT1601 vs. Similar Tractors

Power Output
Poor
Greater than 4% of similar tractors.
Operating Weight
Excellent
Greater than 94% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
K3C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
54.9
Bore (in)
-
Stroke (in)
-
Rated RPM
2400
Power Output (hp)
15.8

Transmission

Type
Gear
Forward Gears
-
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
88.8
Width (in)
38.6
Height (in)
47.2
Operating Weight (lb)
1235 (2WD) / 1345 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agriculture (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts implied)
Brake Type
-
Hydraulic System Type
-
