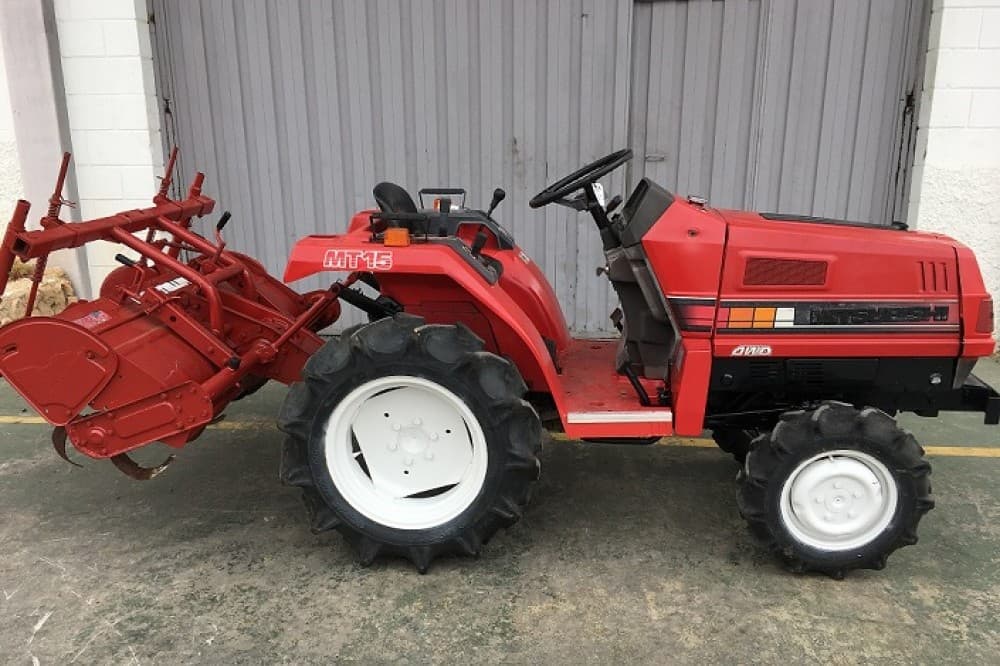

Mitsubishi MT15

Last Updated: June 2024

Overview

The Mitsubishi MT15 is a compact utility tractor that offers a blend of power and versatility despite its small size. Equipped with a 14.8 horsepower Mitsubishi L3C three-cylinder diesel engine with a displacement of 58.09 cubic inches, it provides reliable performance for a variety of tasks. Its liquid-cooled engine ensures optimal thermal management for extended operation. The tractor features a four-wheel drive (4x4 MFWD 4WD) chassis and a gear transmission with 6 forward and 2 reverse speeds, which adds to its maneuverability and efficiency in different working conditions. Although compact, this tractor has a sturdy build with an operating weight of 1500 pounds, making it stable for both fieldwork and utility jobs. This model starts with an electric starter system and runs on a 12-volt battery. Detailed data about rated RPM, tire sizes, and dimensions, as well as information on operator comfort features or additional functionalities like the hydraulic system, are not specified in the provided data. Given this context, users of the Mitsubishi MT15 can expect a solid, functional tractor capable of handling a range of tasks in small to mid-sized farming, gardening, or utility applications.
Show more...

Key Specifications

Category: Utility

Power Output: 14.8

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1500

Fuel Type: Diesel

Mitsubishi MT15 vs. Similar Tractors

Power Output
Poor
Greater than 2% of similar tractors.
Operating Weight
Below Average
Greater than 11% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
L3C
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
58.09
Bore (in)
2.99
Stroke (in)
2.76
Rated RPM
-
Power Output (hp)
14.8

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
1500

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Type I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
