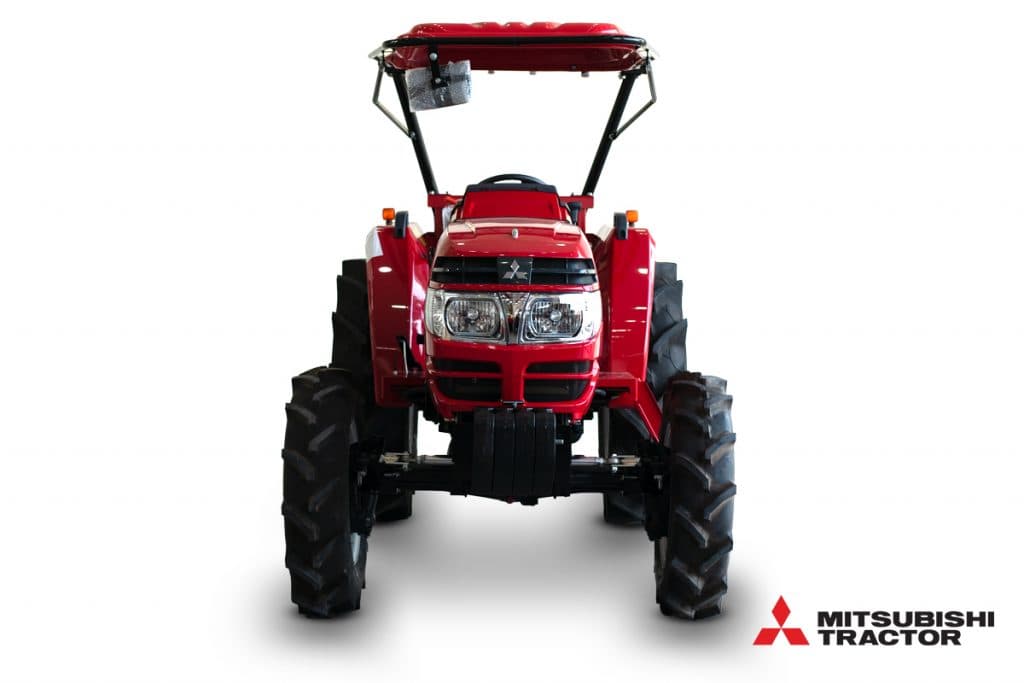

Mitsubishi GX50

Last Updated: June 2024

Overview

The Mitsubishi GX50 is a compact utility tractor equipped with a powerful 50 hp (37.3 kW) Mitsubishi S4Q2 diesel engine. It features a 4-wheel drive (4x4 MFWD 4WD) chassis and 16-speed transmission offering equal forward and reverse gears for versatile maneuverability and operation. With a robust engine displacement of 152.9 cubic inches and a bore and stroke measuring 3.46 inches and 4.06 inches respectively, it delivers reliable performance with an engine rated RPM of 2800. Steering on this model is made easy with a power steering system, and the tractor is equipped with a dry disc clutch. The GX50 has a standard agricultural wheel setup, with front tires measuring 8.3-20 and rear tires at 13.6-28. The tractor's dimensions include a length of 137.8 inches, a width of 61.2 inches, and a height of 94.5 inches, with an operating weight of 4189 pounds. The tractor offers a wheelbase of 78.4 inches (199 cm), ensuring stability during operation. The ground clearance is a sizable 14.6 inches allowing for good operability on uneven terrain. Overall, the Mitsubishi GX50 is designed for a variety of tasks and suitable for those who require a dependable and sturdy compact utility tractor.
Show more...

Key Specifications

Category: Utility

Power Output: 50

Drive Type: 4WD

Operating Weight: 4189

Fuel Type: Diesel

Mitsubishi GX50 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Operating Weight
Average
Greater than 38% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4Q2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
152.9
Bore (in)
3.46
Stroke (in)
4.06
Rated RPM
2800
Power Output (hp)
50

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
32

Dimensions

Length (in)
137.8
Width (in)
61.2
Height (in)
94.5
Operating Weight (lb)
4189

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
