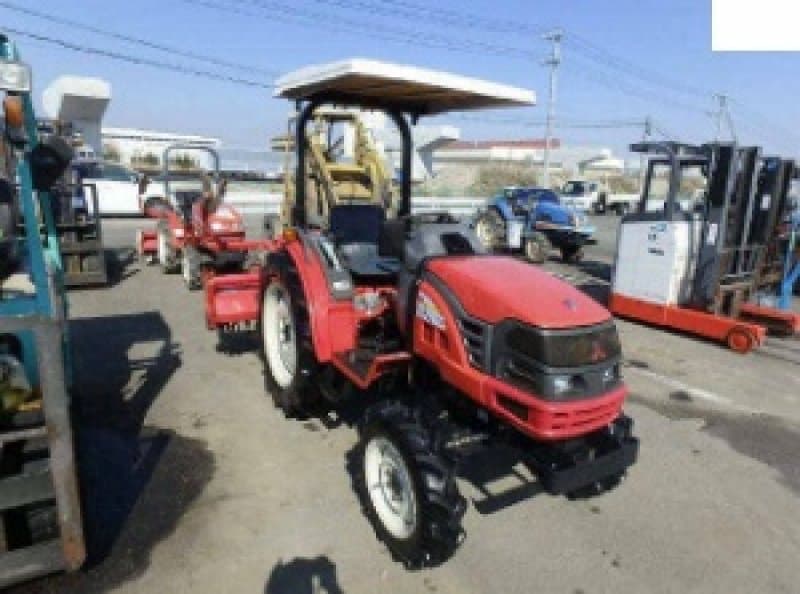

Mitsubishi GS252

Last Updated: June 2024

Overview

The Mitsubishi GS252 is a compact utility tractor designed for a variety of tasks in farming, landscaping, and property maintenance. Equipped with a Mitsubishi S3L2 three-cylinder, liquid-cooled diesel engine, it produces 24.7 horsepower and operates at a rated RPM of 2500. It features a four-wheel drive chassis (4x4 MFWD 4WD) and power steering for improved maneuverability. The tractor has a complex transmission system that could include up to 30 forward and reverse gears, suggesting the presence of a partial power shift capability. Given the tractor's maximum operational weight of 2624 pounds and a height of up to 77.6 inches with the cabin configuration, the GS252 caters to users requiring a durable and versatile machine. Tire options are standard agricultural type, which combined with a significant ground clearance of up to 14.8 inches, allows the tractor to perform well across various terrains.
Show more...

Key Specifications

Category: Utility

Power Output: 24.7

Drive Type: 4WD

Operating Weight: 2624 (Maximum, depending on the configuration)

Fuel Type: Diesel

Mitsubishi GS252 vs. Similar Tractors

Power Output
Below Average
Greater than 17% of similar tractors.
Operating Weight
Below Average
Greater than 21% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2500
Power Output (hp)
24.7

Transmission

Type
-
Forward Gears
-
Reverse Gears
-
Total Gears
30

Dimensions

Length (in)
109.8 (Maximum, depending on the configuration)
Width (in)
50 (Maximum, depending on the configuration)
Height (in)
77.6 (Maximum, depending on the configuration)
Operating Weight (lb)
2624 (Maximum, depending on the configuration)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
JIS0
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab or ROPS options
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
