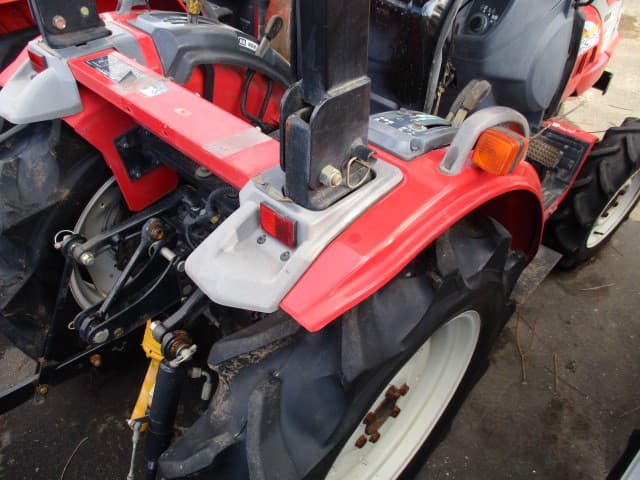

Mitsubishi GS23

Last Updated: June 2024

Overview

The Mitsubishi GS23 is a compact utility tractor well-suited for a wide range of tasks on a small farm or plot of land. This model features a 22.7 horsepower Mitsubishi S3L2 three-cylinder diesel engine, bolstered by a liquid cooling system to ensure stable operation during extended use. With its eight forward and eight reverse gears, the tractor offers versatility and maneuverability in various working conditions. The 4-wheel drive capability, power steering, and dry disc clutch contribute to ease of operation and effective handling across uneven terrain. The tractor's overall length is 106.7 inches, width is 43.5 inches, and height with the ROPS is 75.8 inches. Depending on the configuration, the operating weight starts at 1918 pounds with ROPS and increases to 2359 pounds when equipped with a cab. Key specifications like PTO speeds, hydraulic system type, and brake type were unavailable, which could be critical for understanding the full scope of what this tractor can accomplish. Its robust design and ability to handle various agricultural tasks make it a practical tool for farmers and landowners seeking productivity and dependability.
Show more...

Key Specifications

Category: Utility

Power Output: 22.7

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1918 (ROPS Weight), 2359 (Cab Weight)

Fuel Type: Diesel

Mitsubishi GS23 vs. Similar Tractors

Power Output
Below Average
Greater than 13% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2500
Power Output (hp)
22.7

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
106.7
Width (in)
43.5
Height (in)
75.8
Operating Weight (lb)
1918 (ROPS Weight), 2359 (Cab Weight)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
JIS0 (Standard does not match common types)
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
