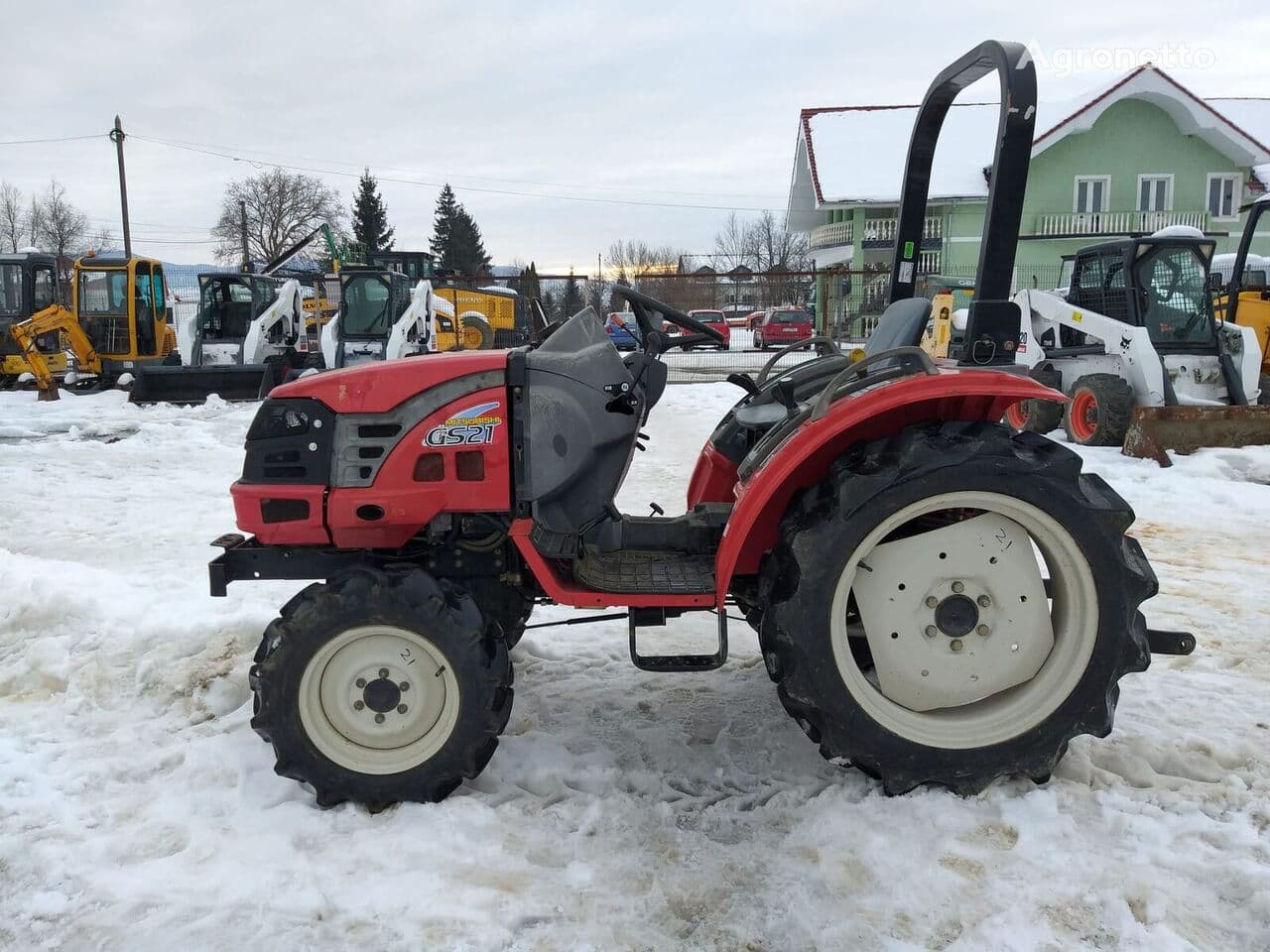

Mitsubishi GS21

Last Updated: June 2024

Overview

The Mitsubishi GS21 is a compact utility tractor well-suited for a variety of tasks around a small farm or acreage. Its robust 4x4 MFWD 4WD chassis ensures stable operation in a variety of terrain conditions. The tractor is powered by a 20.7 horsepower Mitsubishi diesel engine that provides sufficient power for tasks such as mowing, light tillage, or moving materials. Power steering contributes to easy handling, while the manual transmission offers 8 forward and reverse gears, allowing for flexibility in speed selection depending on the job at hand. The standard agricultural tires measure 6-14 on the front and 8.3-24 on the rear, contributing to the tractor's traction and stability. The model is equipped with a dry disc clutch and offers an electric start with a 12-volt system. Available with either ROPS or a cab, operators can choose the configuration that best suits the climate and conditions of their environment. Notably, it has a Category 3 hitch in the rear, designed to connect with various implements. The GS21's compact dimensions with a 57.1-inch wheelbase and 106.7-inch length, along with a 14.2-inch ground clearance make it maneuverable and capable in various settings.
Show more...

Key Specifications

Category: Utility

Power Output: 20.7

Transmission: Manual

Drive Type: 4WD

Operating Weight: 1896 (with ROPS), 2337 (with Cab)

Fuel Type: Diesel

Mitsubishi GS21 vs. Similar Tractors

Power Output
Below Average
Greater than 10% of similar tractors.
Operating Weight
Below Average
Greater than 15% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L2
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
80.4
Bore (in)
3.07
Stroke (in)
3.62
Rated RPM
2500
Power Output (hp)
20.7

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
106.7
Width (in)
43.5
Height (in)
-
Operating Weight (lb)
1896 (with ROPS), 2337 (with Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
24
Rear Tire Width (in)
8.3
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
JIS0
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Cab or ROPS available
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
