Mitsubishi GS180

Last Updated: June 2024

Overview

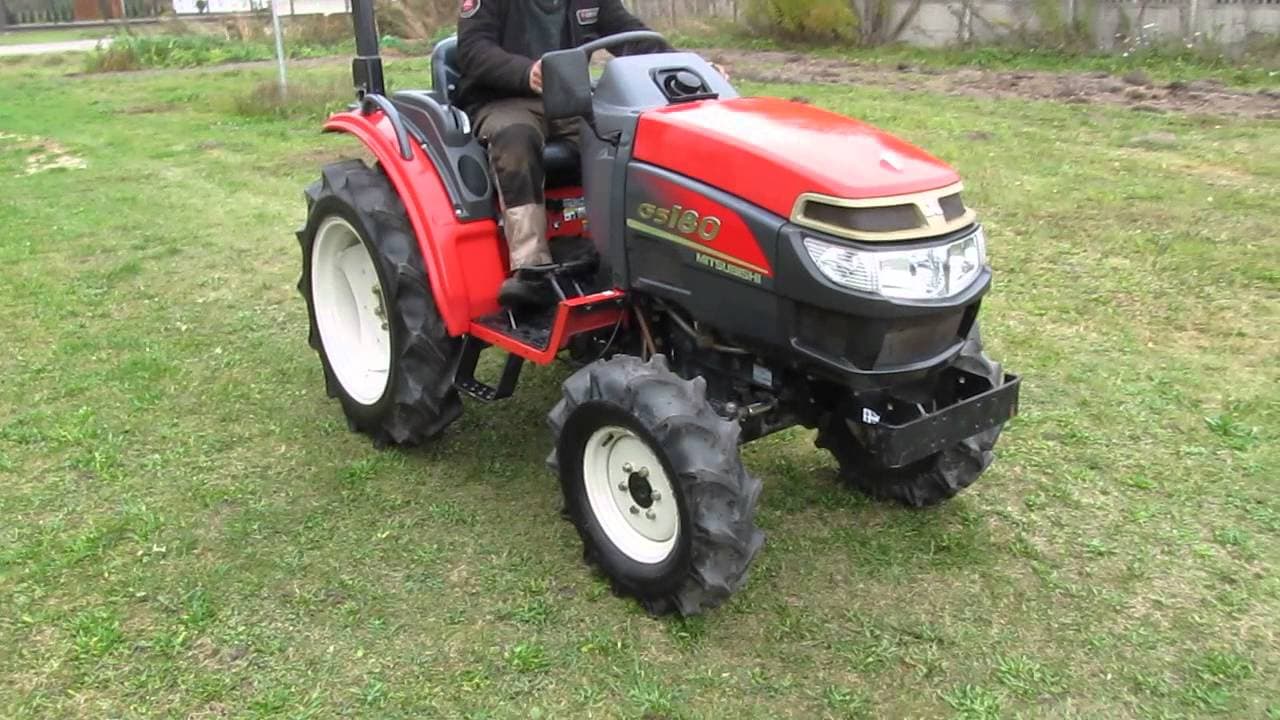

The Mitsubishi GS180 is a compact utility tractor suited for a variety of tasks around a small farm or estate. It comes equipped with a 17.7 horsepower Mitsubishi S3L diesel engine and features a 4-wheel drive chassis with power steering, enhancing maneuverability and traction across different terrains. The liquid-cooled engine ensures that it operates efficiently even during extended periods of heavy use. The tractor has a 12-speed transmission with an equal distribution of gears for forward and reverse movement. It has a strong ground clearance of 13.2 inches and a substantial wheelbase of 54.3 inches, providing stability during operation. The GS180 has a relatively modest footprint with a total length of 104.3 inches and a width of 43.1 inches. As for its height, with ROPS it stands at 74.8 inches, and it has an operating weight of 1819 lbs. Its hitch type conforms to the JIS0 standard, though the category and the exact lift capacity are not known. The agricultural tires are well-suited for farm work, providing good traction in a variety of soil conditions. The exact dimensions of the tires are not provided, but commonly used sizes for this model are a 6.00-12 front and 8.3-22 rear. The electric starter system ensures easy ignition of the engine. Specific product details like PTO type and speeds, brake type, hydraulic system, dimensions of the tires and rims, and operator station features remain unspecified.
Show more...

Key Specifications

Category: Utility

Power Output: 17.7

Drive Type: 4WD

Operating Weight: 1819

Fuel Type: Diesel

Mitsubishi GS180 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Below Average
Greater than 14% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S3L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
3
Displacement (ci)
68.7
Bore (in)
3.071
Stroke (in)
3.091
Rated RPM
2500
Power Output (hp)
17.7

Transmission

Type
-
Forward Gears
12
Reverse Gears
12
Total Gears
24

Dimensions

Length (in)
104.3
Width (in)
43.1
Height (in)
74.8
Operating Weight (lb)
1819

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
JIS0
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
