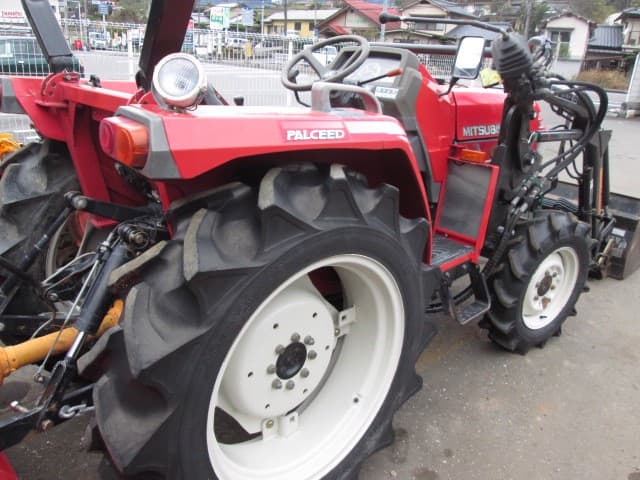

Mitsubishi GO28

Last Updated: June 2024

Overview

The Mitsubishi GO28 is a compact utility tractor designed for a variety of tasks, suitable for small farms, orchards, and specialty agricultural operations. It features a robust 4-wheel drive chassis with a mechanical front-wheel-drive axial layout (MFWD 4WD). This tractor's power steering facilitates easy maneuvering, especially in tight spaces. The Mitsubishi S4L engine is a diesel-powered, liquid-cooled, 4-cylinder engine with a displacement of 91.5 cubic inches, generating 27.6 horsepower. Its power output and economy are balanced for this tractor's class and purpose. The transmissions provide an ample range of 16 forward and reverse gears. Operating weights differ between the ROPS and cab versions, 2921 lbs and 3362 lbs respectively, ensuring stability during use. The tractor's length, width, height, and wheelbase denote a readily manageable size for various tasks while still maintaining a reasonable ground clearance of 13.6 inches. The tread measurements suggest the tractor is set up for typical agricultural row widths but can be adjusted accordingly. Despite the presence of standard agricultural tires, their specific dimensions remain undefined. Overall, the GO28 tractor offers a combination of versatility, durability, and power conducive to efficient work in different agricultural settings.
Show more...

Key Specifications

Category: Utility

Power Output: 27.6

Drive Type: 4WD

Operating Weight: 2921 (ROPS), 3362 (Cab)

Fuel Type: Diesel

Mitsubishi GO28 vs. Similar Tractors

Power Output
Below Average
Greater than 22% of similar tractors.
Operating Weight
Below Average
Greater than 24% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4L
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
91.5
Bore (in)
3.07
Stroke (in)
3.09
Rated RPM
2600
Power Output (hp)
27.6

Transmission

Type
-
Forward Gears
16
Reverse Gears
16
Total Gears
-

Dimensions

Length (in)
123.6
Width (in)
54.7
Height (in)
77.4 (ROPS)
Operating Weight (lb)
2921 (ROPS), 3362 (Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
26
Rear Tire Width (in)
11.2
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
JISI
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
