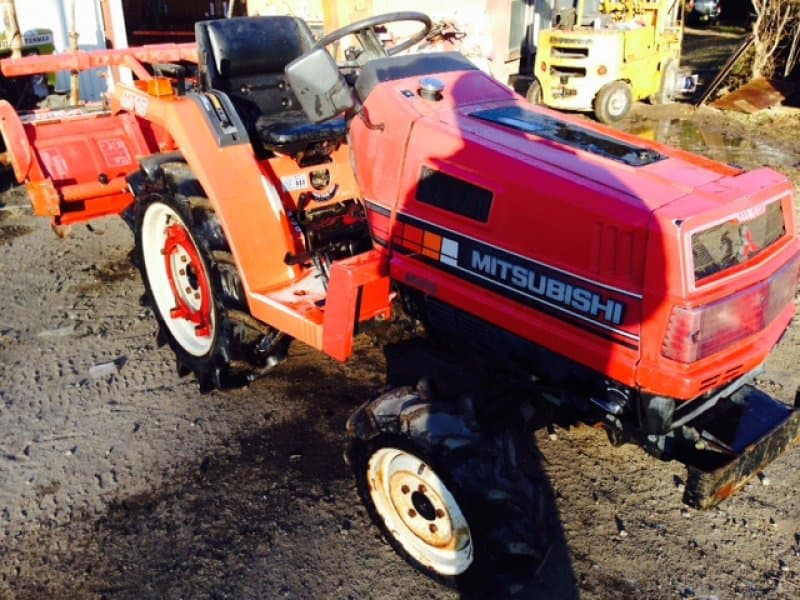

Mitsubishi GF16

Last Updated: June 2024

Overview

The Mitsubishi GF16 is a sub-compact utility tractor that offers a four-wheel drive configuration with a 4x4 MFWD 4WD chassis. It is powered by a Mitsubishi L3E three-cylinder, liquid-cooled diesel engine with a displacement of 58.1 cubic inches, capable of producing up to 15.3 horsepower at 2500 RPM. The engine's bore and stroke measure 2.99 inches and 2.76 inches respectively. This tractor's transmission is a gear type with six forward and three reverse gears, facilitating various tasks that require different speeds and power. The GF16 is relatively compact, with a length of 87 inches, a width of 39.2 inches, and a height of 70.1 inches, while weighing 1235 pounds. In terms of tires, it sports standard agricultural tires with a front size of 5.00-12 and a rear size larger than the front. The tractor also boasts an electric starter system, contributing to its ease of use. The GF16's design includes notable ground clearance of 11.8 inches, which is beneficial for uneven terrain.
Show more...

Key Specifications

Category: Utility, Sub-Compact

Power Output: 15.3

Transmission: Gear

Drive Type: 4WD

Operating Weight: 1235

Fuel Type: Diesel

Mitsubishi GF16 vs. Similar Tractors

Power Output
Poor
Greater than 3% of similar tractors.
Operating Weight
Poor
Greater than 8% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
L3E
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
58.1
Bore (in)
2.99
Stroke (in)
2.76
Rated RPM
2500
Power Output (hp)
15.3

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
87
Width (in)
39.2
Height (in)
70.1
Operating Weight (lb)
1235

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
