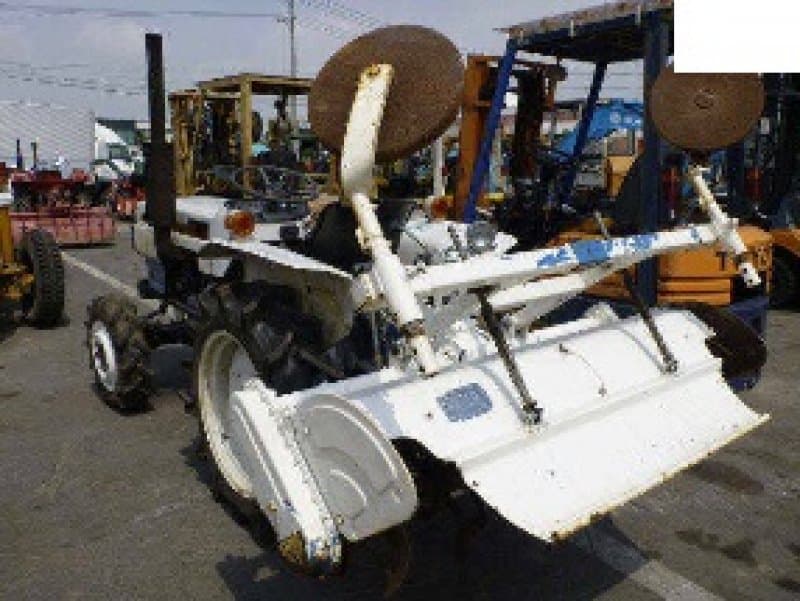

Mitsubishi GCR75

Last Updated: September 2024

Overview

The Mitsubishi GCR75 is a powerful and versatile tractor designed for serious farm work. It features a strong Mitsubishi S4S-DT engine with 74 horsepower. This diesel engine is turbocharged and liquid-cooled, with four cylinders and a displacement of 203.3 cubic inches. The engine runs at 2500 RPM, providing plenty of power for tough jobs.

This tractor uses a hydrostatic transmission, which means it has smooth, infinite speed control in both forward and reverse. It has two speed ranges, giving farmers flexibility for different tasks. The GCR75 is big and sturdy, measuring 152.8 inches long, 70.9 inches wide, and 101.2 inches tall. It weighs 7981 pounds, making it stable for heavy-duty work. The tractor has good ground clearance at 15.4 inches, helping it move easily over rough terrain. It also has a Category 3 hitch, which can handle large implements. With its electric starter and 12-volt system, the GCR75 is easy to use and maintain.
Show more...

Key Specifications

Power Output: 74 hp (55.2 kW)

Transmission: Hydrostatic

Operating Weight: 7981 lb (3620 kg)

Fuel Type: Diesel

Mitsubishi GCR75 vs. Similar Tractors

Power Output

The Power Output for the Mitsubishi GCR75 is Average. It is greater than 58% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Operating Weight

The Operating Weight for the Mitsubishi GCR75 is Average. It is greater than 64% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Mitsubishi GCR75 is Average. It is greater than 50% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Mitsubishi GCR75 is Average. It is greater than 68% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Mitsubishi
Model
S4S-DT
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
203 ci (3.3 L)
Bore
3.70 in (94.0 mm)
Stroke
4.72 in (119.9 mm)
Rated RPM
2500
Power Output
74 hp (55.2 kW)

Transmission

Type
Hydrostatic
Forward Gears
Infinite (2-range)
Reverse Gears
Infinite (2-range)
