Mitsubishi GA28

Last Updated: June 2024

Overview

The Mitsubishi GA28 is a compact utility tractor designed with a 4x4 MFWD 4WD chassis and is powered by an Iseki E3CD diesel engine rated at 28.8 horsepower and 2500 RPM. This model comes with a wet disc clutch transmission including 24 forward and reverse gears, allowing operators to choose the optimal speed for various tasks. Equipped with power steering for easier maneuverability, the tractor can accommodate both a ROPS and cab configuration. It has substantial ground clearance of 13.2 inches, aiding in diverse terrain operations. With a wheelbase of 65.6 inches and significant operating weights of 3219 lbs (ROPS) and 3593.5 lbs (cab), this tractor is well-suited for various agricultural requirements, balancing size and power for effective performance.

Key Specifications

Category: Utility

Power Output: 28.8

Drive Type: 4WD

Operating Weight: 3219 to 3593.5 (varies by cab)

Fuel Type: Diesel

Image Gallery

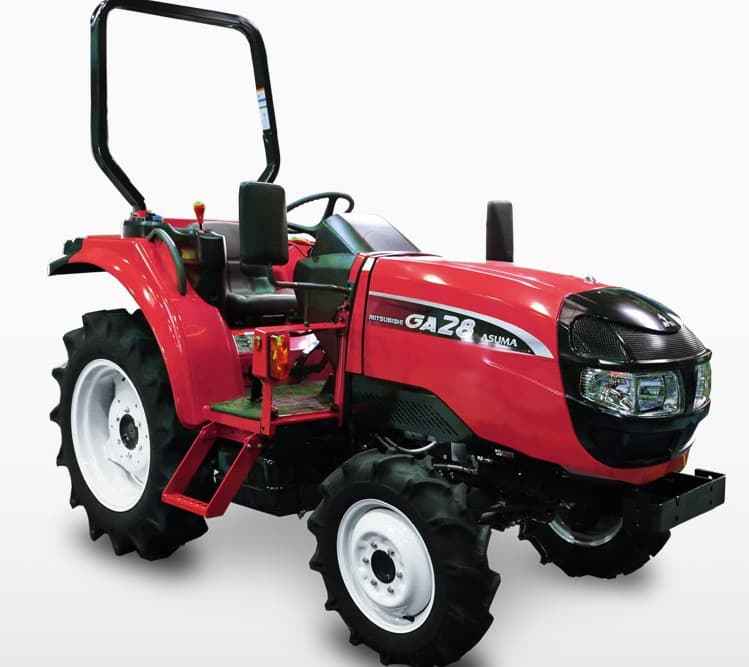

Mitsubishi GA28 Tractor

Mitsubishi GA28 vs. Similar Tractors

Power Output

Below Average

Greater than 23% of similar tractors.

Operating Weight

Above Average

Greater than 85% of similar tractors.

Technical Specifications

Engine

Manufacturer: Iseki
Model: E3CD
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 3
Displacement (ci): 91.4
Bore (in): 3.43
Stroke (in): 3.3
Rated RPM: 2500
Power Output (hp): 28.8

Transmission

Type: -
Forward Gears: 24
Reverse Gears: 24
Total Gears: 24

Dimensions

Length (in): 128.7
Width (in): 59.8
Height (in): Unknown (two different heights provided, ROPS and Cab)
Operating Weight (lb): 3219 to 3593.5 (varies by cab)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): 24
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Standard (ag)
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Both ROPS and Cab available
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
