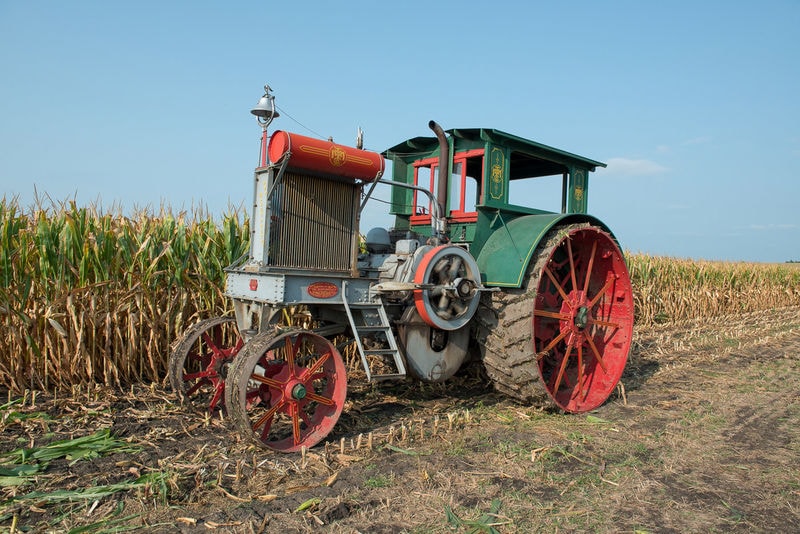

Minneapolis Threshing Machine Company 25-50

Last Updated: June 2024

Overview

The Minneapolis 25-50 is a classic standard-tread tractor that exemplifies the durability and simplicity of early 20th-century agricultural machinery. It was manufactured by the Minneapolis Threshing Machine Company, well-known at the time for its robust and reliable equipment. This model is equipped with a 4-cylinder, kerosene-fueled, liquid-cooled engine with a large 904.8 cubic-inch displacement, which is quite substantial for tractors of its era, designed to provide steady power for plowing and other heavy-duty tasks. The 25-50 operates on a simple 2-speed gear transmission, with manual steering and a 2WD chassis. It was started with a hand crank, reminding us of the physical work it required to operate farm machinery at that time. With large steel rear wheels, it was built to withstand the demanding conditions of farming and land work.
Show more...

Key Specifications

Category: Utility, Standard Tread

Transmission: Gear

Drive Type: 2WD

Operating Weight: 17000

Fuel Type: Kerosene

Minneapolis Threshing Machine Company 25-50 vs. Similar Tractors

Operating Weight
Average
Greater than 69% of similar tractors.

Technical Specifications

Engine

Manufacturer
Minneapolis Threshing Machine Company
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Kerosene
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
904.8
Bore (in)
6
Stroke (in)
8
Rated RPM
550
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
2
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
17000

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
85
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
24
Tire Type
Steel
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Hand crank
Brake Type
-
Hydraulic System Type
-
