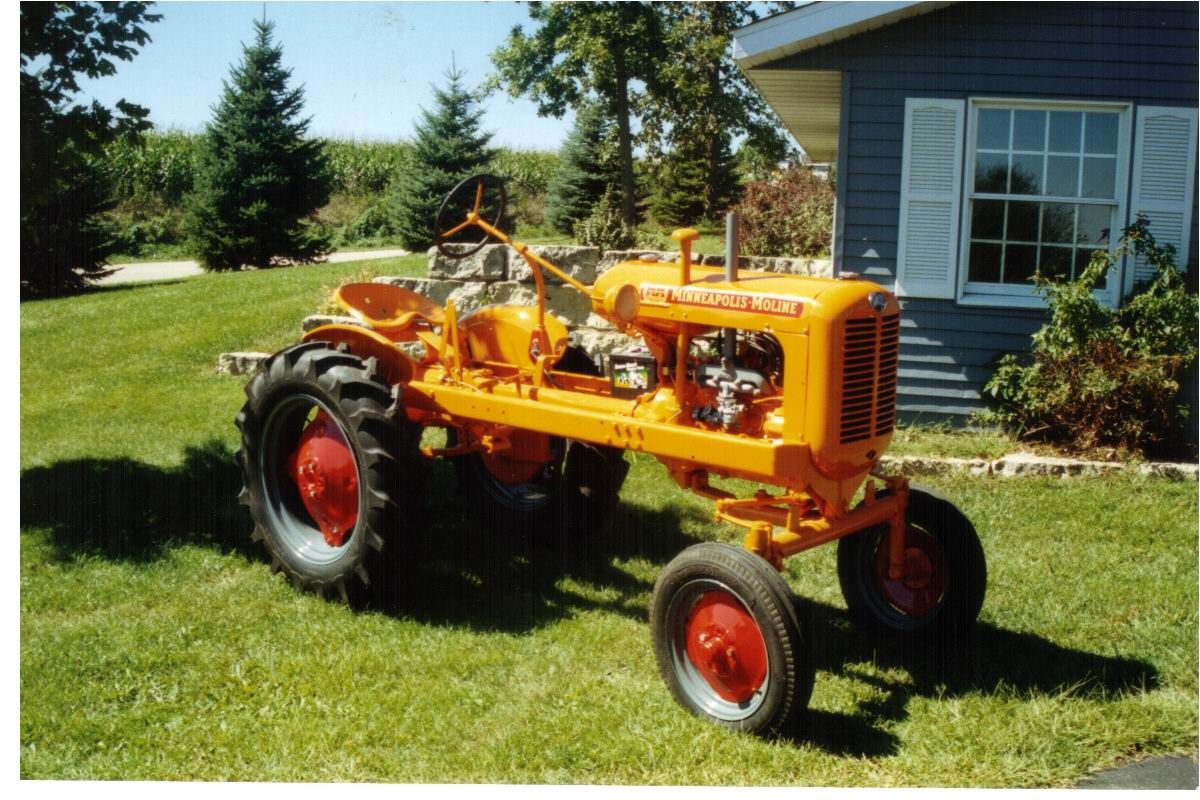

Minneapolis-Moline V

The Minneapolis-Moline Model V is a utility-type tractor, adhering to the classic principles of robustness and simplicity. Equipped with a manual steering system, it facilitates navigability although requiring more physical effort than power steering mechanisms. This machine includes an unsynchronized gear transmission with 3 forward and 1 reverse gears, which despite its simplicity, is effective for straightforward farming tasks. Hercules manufactured the ZXB-3 4-cylinder gasoline engine, featuring a 64.9 cubic inches displacement with a bore and stroke of 2.625 by 3.00 inches, respectively. The engine's liquid thermosiphon cooling system—a precursor to more modern cooling systems—is used to manage engine temperature, and it operates at a rated RPM of 1800. Notable is the oil bath air cleaner system, which, although dated, is effective in keeping the engine free of impurities in dusty agricultural environments. The tractor rolls on agricultural tires with front dimensions of 4.00x15 inches and rear dimensions of 8x24 inches, providing adequate traction in varied farm conditions. The Model V's dimensions are lean yet functional, with a length of 105 inches, a width of 51 inches, and a maximum height at the steering wheel of 61.25 inches. It weighs in at 1710 pounds, a testament to its solid build quality designed for utility work. While this narrative covers the core aspects of the Minneapolis-Moline Model V tractor, some specifics about the hitch system, operator station type, PTO speeds, brake type, and hydraulic system remain elusive, reflecting the generation in which this machine was conceived.
