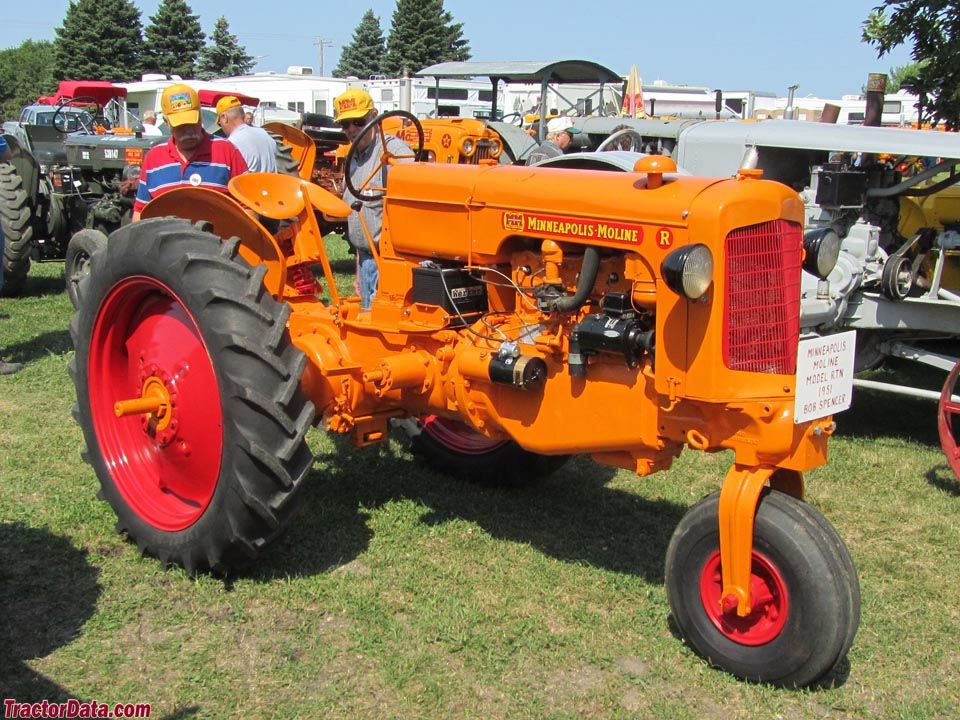

Minneapolis-Moline RTN

Last Updated: June 2024

Overview

The Minneapolis-Moline RTN is a classic row-crop tractor renowned for its utility in a variety of agricultural tasks. It features a simple 4x2 2WD chassis layout and manual steering, suited for the demands of row-crop farming. Power is delivered through a four-speed unsynchronized gear transmission. Equipped with a 4-cylinder Minneapolis-Moline gasoline engine, the RTN has a 165 cubic inch displacement and operates at a rated RPM of 1500. The tractor is liquid-cooled, with a coolant capacity of 13.5 quarts, ensuring it operates efficiently over longer periods. The tractor's physical dimensions contribute to its stability and functionality on the field, with an operating weight of 3100 pounds. While certain specifics regarding the hitch system and Power Take-Off (PTO) are not indicated, the RTN's durable design made it a valuable asset to farmers during its years of production.
Show more...

Key Specifications

Category: Row Crop

Transmission: Unsynchronized gear

Drive Type: 2WD

Operating Weight: 3100

Fuel Type: Gasoline

Minneapolis-Moline RTN vs. Similar Tractors

Operating Weight
Below Average
Greater than 16% of similar tractors.

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
165
Bore (in)
3.625
Stroke (in)
4
Rated RPM
1500
Power Output (hp)
-

Transmission

Type
Unsynchronized gear
Forward Gears
4
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
115.75
Width (in)
81.1
Height (in)
69.5
Operating Weight (lb)
3100

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
13.5
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (assumed based on "Engine - Starter volts: 6")
Brake Type
-
Hydraulic System Type
-
