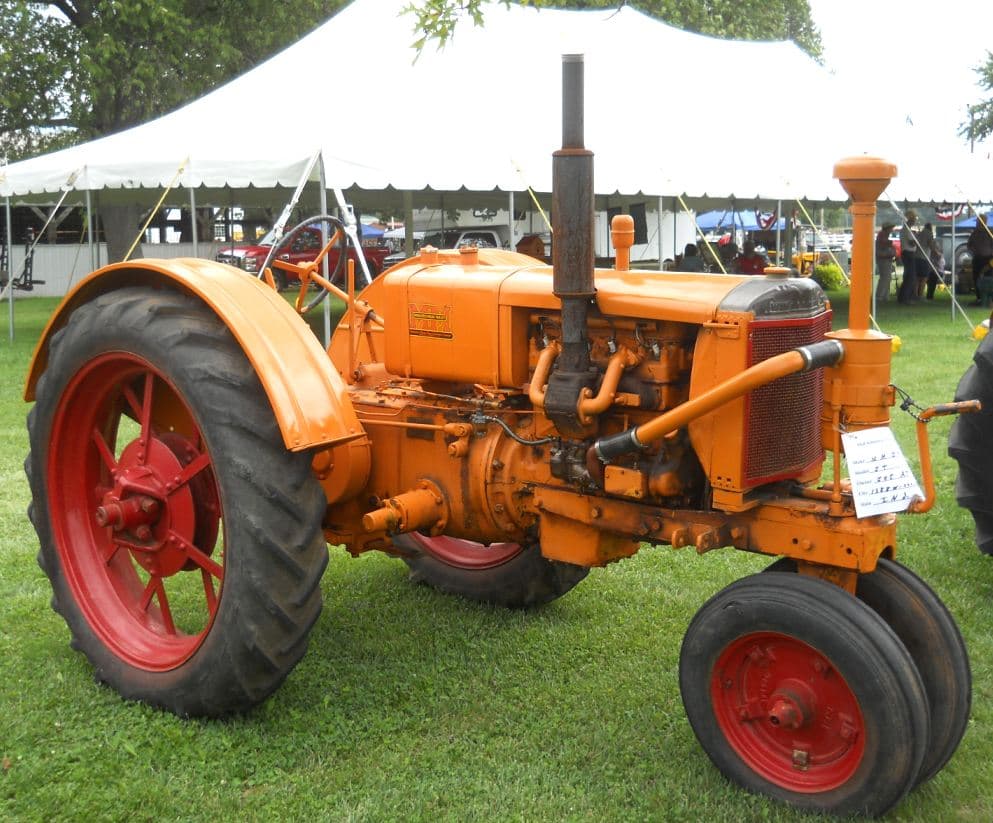

Minneapolis-Moline JT

Last Updated: September 2024

Overview

The Minneapolis-Moline JT is a row crop tractor built for farm work. It has a 2-wheel drive system and manual steering, making it simple to operate. The tractor uses a gear transmission with 5 forward gears and 1 reverse gear, giving farmers good control over speed and power.

Under the hood, the JT has a Waukesha gasoline engine with 4 cylinders and 8 valves. The engine is liquid-cooled and naturally aspirated, with a displacement of 196.1 ci. This engine size is below average compared to other tractors. It runs at 1275 rpm, which is also lower than most tractors. The JT weighs 3450 lb, making it a lightweight option for its class. Its compact size (115.5 in long, 79 in wide, and 56 in tall) allows for easy maneuvering in crop rows.
Show more...

Key Specifications

Category: Row Crop

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3450 lb (1565 kg)

Fuel Type: Gasoline

Minneapolis-Moline JT vs. Similar Tractors

Operating Weight

The Operating Weight for the Minneapolis-Moline JT is Poor. It is greater than 3% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Minneapolis-Moline JT is Poor. It is greater than 7% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Minneapolis-Moline JT is Poor. It is greater than 1% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Waukesha
Cooling Type
Liquid-cooled
Valve Configuration
8-valve
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement
196 ci (3.2 L)
Bore
3.62 in (92.1 mm)
Stroke
4.75 in (120.6 mm)
Rated RPM
1275

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
