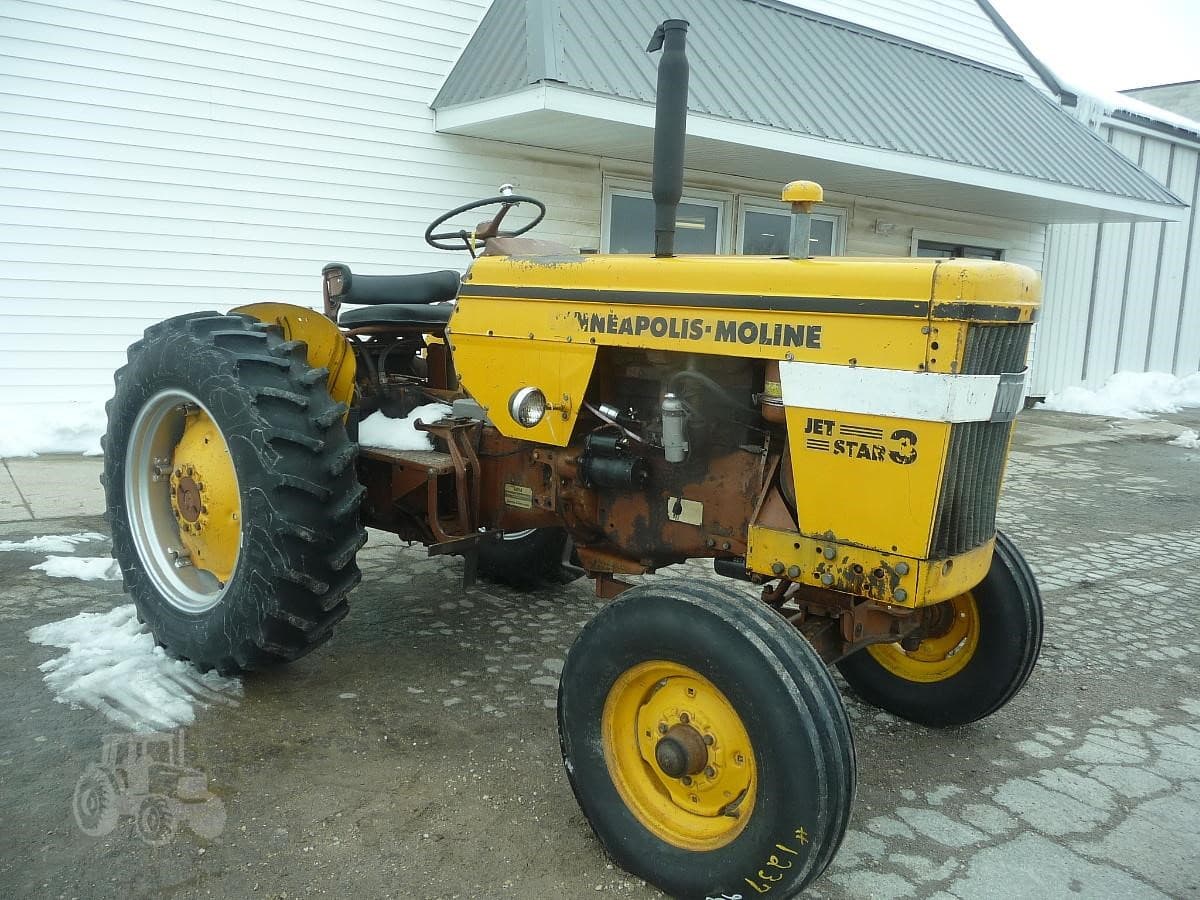

Minneapolis-Moline Jet Star 3 Super

Last Updated: June 2024

Overview

The Minneapolis-Moline Jet Star 3 Super is a versatile tractor that was manufactured with options for gasoline, diesel, or LP gas-fueled engines, all of which are 4-cylinder and naturally aspirated with a displacement of 206 cubic inches. Notably, this tractor model offers users a choice between a partial power shift transmission, which provides 10 forward and 2 reverse gears, and a simpler gear transmission with 5 forward and 1 reverse gear. The rated RPM of the engine is 1750, which reflects the performance capacity of machines from its production era. Although exact horsepower figures are not available, this RPM would generally be associated with utility work common to farm operations of the time. This tractor features manual steering and a rear hitch of category II, with an electric starter system running at 12 volts. It is designed to facilitate a range of agricultural tasks, evidenced by its tire and wheel configurations which indicate that it was likely used in a variety of field conditions. The operational weights vary slightly depending on the engine fuel type, indicating slight differences in the construction to accommodate the different engines.
Show more...

Key Specifications

Transmission: Partial power shift, Gear

Operating Weight: 4260 (Gasoline), 4420 (LP-gas), 4260 (Diesel)

Fuel Type: Gasoline, Diesel, LP gas

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline, Diesel, LP gas
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
206
Bore (in)
3.625
Stroke (in)
5
Rated RPM
1750
Power Output (hp)
-

Transmission

Type
Partial power shift, Gear
Forward Gears
10 (partial power shift), 5 (gear)
Reverse Gears
2 (partial power shift), 1 (gear)
Total Gears
-

Dimensions

Length (in)
132.5
Width (in)
70.25
Height (in)
70.625
Operating Weight (lb)
4260 (Gasoline), 4420 (LP-gas), 4260 (Diesel)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Manual
Coolant Capacity (qts)
12
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
II
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter (12 volts)
Brake Type
-
Hydraulic System Type
-
