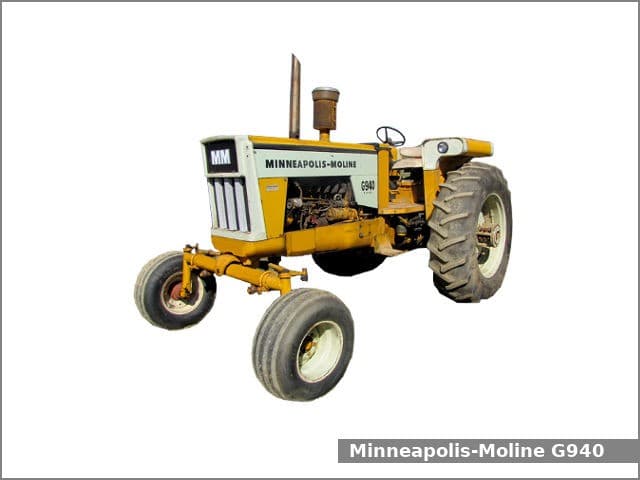

Minneapolis-Moline G940

Last Updated: June 2024

Overview

The Minneapolis-Moline G940 is a versatile tractor that was available in either 2-wheel drive or 4-wheel drive options, catering to a range of agricultural tasks. Manufactured from 1971 to 1973, this tractor is powered by an Oliver-Waukesha 5.1L diesel or gasoline engine, which delivers power of 98 HP (diesel) or 92 HP (gasoline) at a peak of 2400 RPM. It comes with two transmission variants—a standard gear transmission with 6 forward and 2 reverse gears, and an optional Hydraul-Shift partial power shift transmission providing 18 forward and 6 reverse gears. The G940 sits on a wheelbase of 103 inches for the 2WD variant and 86.25 inches for the 4WD variant, with an operating weight of 11,150 pounds. It features a hydraulic differential disc brake system and hydrostatic power steering as well as a three-point hitch system with a lifting capacity between 4,000 to 6,000 pounds, dependent on the hitch category.
Show more...

Key Specifications

Category: Utility

Power Output: 98 (Diesel) or 92 (Gasoline)

Transmission: Gear or partial power shift

Drive Type: 4x2 2WD or 4x4 MFWD 4WD (optional)

Operating Weight: 11,150

Fuel Type: Diesel or Gasoline

Image Gallery

Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor Minneapolis-Moline G940 Tractor

Minneapolis-Moline G940 vs. Similar Tractors

Power Output
Excellent
Greater than 99% of similar tractors.
Operating Weight
Poor
Greater than 5% of similar tractors.

Technical Specifications

Engine

Manufacturer
Oliver-Waukesha
Model
5.1L 6-cyl diesel or 5.1L 6-cyl gasoline
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel or Gasoline
Induction Type
-
Cylinders
6
Displacement (ci)
310
Bore (in)
3.875
Stroke (in)
4.375
Rated RPM
2400
Power Output (hp)
98 (Diesel) or 92 (Gasoline)

Transmission

Type
Gear or partial power shift
Forward Gears
6 (Gear), 18 (Partial power shift)
Reverse Gears
2 (Gear), 6 (Partial power shift)
Total Gears
-

Dimensions

Length (in)
159.5 (2WD), 152.375 (4WD)
Width (in)
80.625
Height (in)
85.5
Operating Weight (lb)
11,150

Power Take-Off (PTO)

PTO Type
Independent
PTO Speed 1 (rpm)
540
PTO Speed 2 (rpm)
540/1000 (optional)
PTO Speed 3 (rpm)
1000 (optional)

Miscellaneous

Chassis
-
Drive Type
4x2 2WD or 4x4 MFWD 4WD (optional)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
20
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
1973
Hitch Type
Three-Point Hitch
Hitch Category
Category 2 or 3 (optional)
Hitch Position
Rear
Hitch Capacity (lb)
4,000 lbs (Category 2), 6,000 lbs (Category 2 or 3 optional)
Operator Station Type
Open operator station. ROPS or cab (optional)
Starter Type
Electric
Brake Type
Differential hydraulic disc
Hydraulic System Type
Closed center
