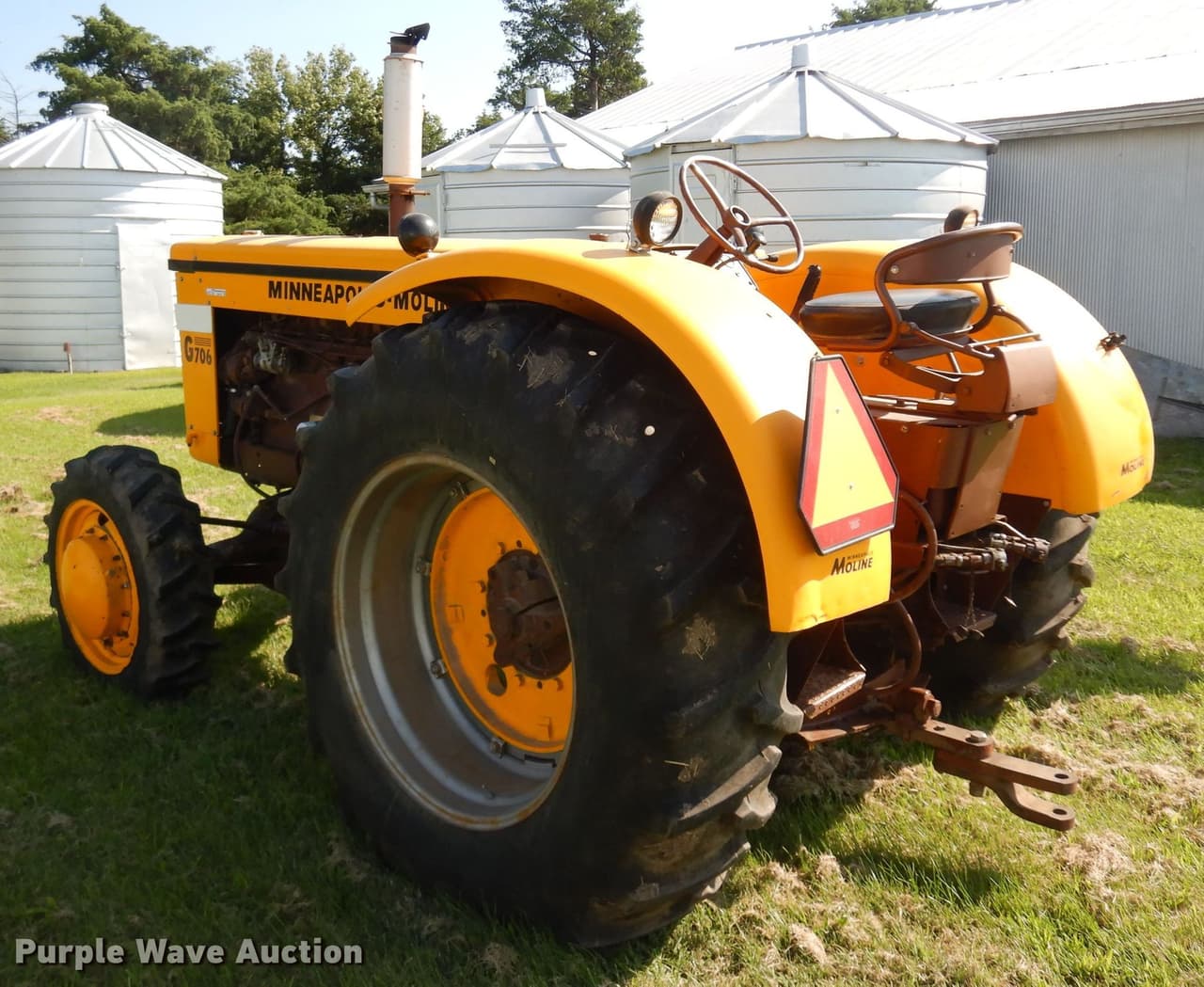

Minneapolis-Moline G706

Last Updated: September 2024

Overview

The Minneapolis-Moline G706 is a powerful diesel tractor built for tough farm work. It has a strong 6-cylinder engine made by Minneapolis-Moline, with a displacement of 504 cubic inches. This engine runs at 1600 RPM, giving the tractor plenty of power for various tasks.

The G706 features a transmission with 5 forward gears and 1 reverse gear, allowing farmers to choose the right speed for different jobs. It has power-assisted steering, making it easier to control in the field. The tractor weighs 9,015 pounds, which helps it grip the ground well. It uses agricultural tires on both the front and back, with 9.5-24 sized tires in the front. The G706 can be made even heavier, up to 16,145 pounds, for tasks that need extra weight. It starts up easily with a 12-volt electric starter, ready to work when farmers need it.
Show more...

Key Specifications

Transmission: Unsynchronized gear

Operating Weight: 9015 lb (4089 kg)

Fuel Type: Diesel

Minneapolis-Moline G706 vs. Similar Tractors

Operating Weight

The Operating Weight for the Minneapolis-Moline G706 is Above Average. It is greater than 70% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Minneapolis-Moline G706 is Excellent. It is greater than 91% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Minneapolis-Moline G706 is Poor. It is greater than 5% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Fuel Type
Diesel
Cylinders
6
Displacement
504 ci (8.3 L)
Bore
4.62 in (117.5 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
1600

Transmission

Type
Unsynchronized gear
Forward Gears
5
Reverse Gears
1
