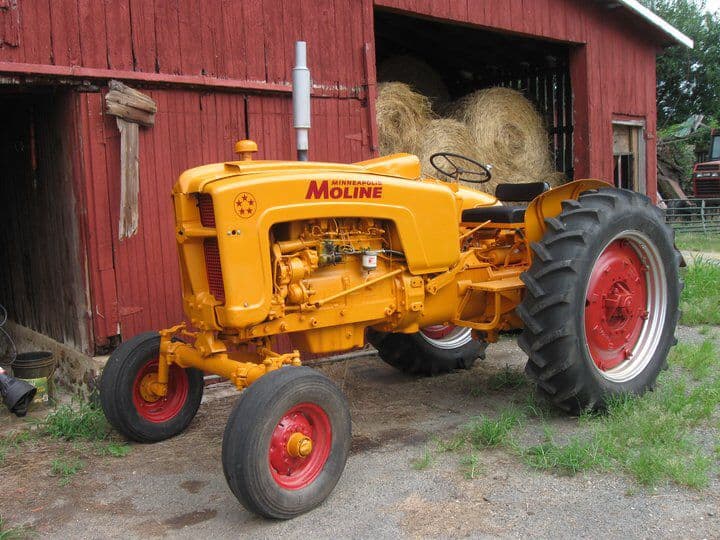

Minneapolis-Moline 5 Star

Last Updated: September 2024

Overview

The Minneapolis-Moline 5 Star is a powerful and versatile tractor designed for serious farm work. It features a gasoline engine made by Minneapolis-Moline, with four cylinders and a displacement of 283.7 cubic inches. The engine has a bore of 4.25 inches and a stroke of 5 inches, running at a rated speed of 1500 RPM. This tractor comes with power-assisted steering, making it easier to control in tough conditions.

The 5 Star has a partial power shift transmission with 10 forward gears and 2 reverse gears, giving farmers plenty of options for different tasks. It's a big machine, measuring 140 inches long, 70 inches wide, and 73 inches high. Weighing in at 6500 pounds, it's built to handle heavy-duty jobs. The tractor is equipped with agricultural tires on both front and rear, and it has a category II/I rear hitch for attaching various implements. With its electric starter and 22-quart coolant capacity, the 5 Star is ready for long days in the field.
Show more...

Key Specifications

Transmission: Partial Power Shift

Operating Weight: 6500 lb (2948 kg)

Fuel Type: Gasoline

Minneapolis-Moline 5 Star vs. Similar Tractors

Operating Weight

The Operating Weight for the Minneapolis-Moline 5 Star is Average. It is greater than 54% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 6.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Minneapolis-Moline 5 Star is Above Average. It is greater than 73% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Minneapolis-Moline 5 Star is Poor. It is greater than 4% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Minneapolis-Moline
Fuel Type
Gasoline
Cylinders
4
Displacement
284 ci (4.6 L)
Bore
4.25 in (107.9 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
1500

Transmission

Type
Partial Power Shift
Forward Gears
10
Reverse Gears
2
