Mercedes-Benz Trac 1500

Last Updated: June 2024

Overview

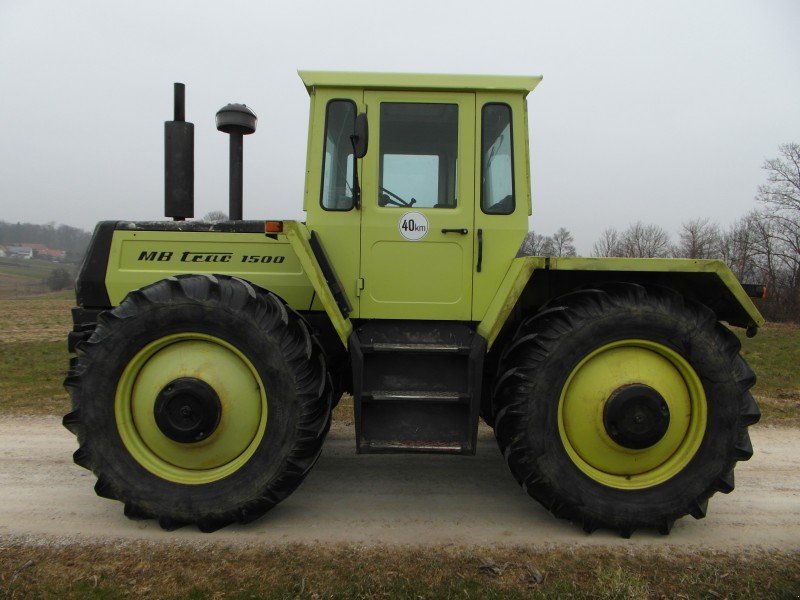

The Mercedes-Benz Trac 1500 is a four-wheel drive utility tractor that features a robust 346.3 cubic inch, 6-cylinder, turbocharged diesel engine produced by Mercedes-Benz, which generates 150 horsepower at 2400 RPM. It's equipped with a hydrostatic power steering system to ease handling and a 14-speed transmission for a wide range of speed options. Both the front and rear tires are sized at 18.4R34, consistent with its 4x4 4WD chassis designation, providing substantial traction for various agricultural tasks. The tractor's wheelbase measures at 104.33 inches (264 cm) which contributes to its stable ride. The dimensions of the Trac 1500 are indicative of its utility focus, standing at 115.35 inches (292 cm) in height and totaling 184.25 inches (467 cm) in length. With an operating weight of 13715 lbs (6221 kg), this tractor offers the heft and power needed for substantial farming operations or other heavy-duty applications.
Show more...

Key Specifications

Category: Utility

Power Output: 150

Drive Type: Four-wheel Drive (4WD)

Operating Weight: 13715

Fuel Type: Turbocharged diesel

Mercedes-Benz Trac 1500 vs. Similar Tractors

Power Output
Excellent
Greater than 91% of similar tractors.
Operating Weight
Average
Greater than 67% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mercedes-Benz
Model
OM 352A
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
346.3
Bore (in)
3.82
Stroke (in)
5.04
Rated RPM
2400
Power Output (hp)
150

Transmission

Type
-
Forward Gears
14
Reverse Gears
14
Total Gears
28

Dimensions

Length (in)
184.25
Width (in)
-
Height (in)
115.35
Operating Weight (lb)
13715

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 WD
Drive Type
Four-wheel Drive (4WD)
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
34
Front Tire Width (in)
18.4
Rear Tire Diameter (in)
34
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
