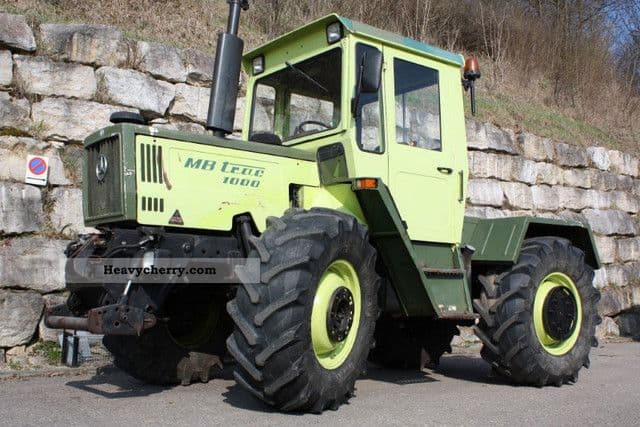

Mercedes-Benz Trac 1000

Last Updated: June 2024

Overview

The Mercedes-Benz Trac 1000 is a 4-wheel drive utility tractor that embodies the reliability and engineering excellence of its brand. Its robust chassis supports a 4WD driveline, and the tractor's maneuvering is assisted by hydrostatic power steering, making it easy to operate in a variety of field conditions. The tractor is powered by a sturdy Mercedes-Benz 6.0L 6-cyl diesel engine that produces a respectable 100 horsepower at 2400 rpm with a peak torque of 258.2 lb-ft at 1500 rpm, allowing for substantial pulling power and efficient operation. The transmission offers a versatile range of 16 forward gears and 8 reverse gears, empowering the operator with flexibility to match the speed to the task. Sitting on a substantial wheelbase of 102.36 inches (259 cm), and with a total length of 175.20 inches (445 cm), the Trac 1000 showcases a balanced stance in the field, further enhanced by its weight of 9922 lbs (4500 kg), which aids in traction and stability.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Drive Type: 4WD

Operating Weight: 9922

Fuel Type: Diesel

Mercedes-Benz Trac 1000 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mercedes-Benz
Model
6.0L 6-cyl diesel
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
363.56
Bore (in)
3.8386
Stroke (in)
5.2362
Rated RPM
2400
Power Output (hp)
100

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
175.2
Width (in)
-
Height (in)
112.99
Operating Weight (lb)
9922

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
