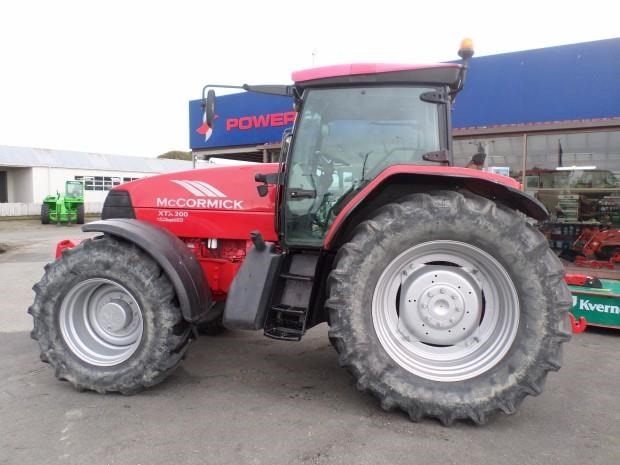

McCormick Intl XTX200

Last Updated: June 2024

Overview

The McCormick Intl XTX200 is a robust row-crop tractor with a powerful Iveco 6-cylinder, turbocharged diesel engine capable of 195.8 horsepower and a torque of 590.1 lb-ft at 1400 RPM. It comes with a liquid-cooling system to maintain engine temperature and a 12-volt electric starter. Its chassis features a 4x4 MFWD 4WD, providing enhanced traction and stability for various agricultural tasks. The XTX200 is equipped with a hydrostatic power steering system for easier maneuverability and varied transmission options, including the XtraSpeed powershift with up to 48 forward and 40 reverse gears when a creeper option is included. Its three-point hitch provides Category 3 compatibility, and while the exact lift capacity is unspecified, one can expect it to accommodate most row-crop functions. The overall length of the tractor is 209 inches, the height is 119 inches, and it has a wheelbase of 113.1 inches, signifying a significant presence and a stable working platform in the field. The tractor's weight ranges from 15,880 to 16,010 pounds, making it reasonably heavy and powerful enough for demanding tasks.
Show more...

Key Specifications

Category: Row Crop

Power Output: 195.8

Transmission: Powershift

Drive Type: 4WD

Operating Weight: 15880 (assuming the lower limit given)

Fuel Type: Diesel

McCormick Intl XTX200 vs. Similar Tractors

Power Output
Above Average
Greater than 71% of similar tractors.
Operating Weight
Average
Greater than 62% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
410.6
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
195.8

Transmission

Type
Powershift
Forward Gears
32
Reverse Gears
24
Total Gears
48 (assuming the largest number from the creeper gears)

Dimensions

Length (in)
209
Width (in)
-
Height (in)
119
Operating Weight (lb)
15880 (assuming the lower limit given)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown (only metric size provided)
Front Tire Width (in)
Unknown (only metric size provided)
Rear Tire Diameter (in)
Unknown (only metric size provided)
Rear Tire Width (in)
Unknown (only metric size provided)
Front/Rear Rim Diameter (in)
Unknown (only metric size provided)
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (assumed from starter volts)
Brake Type
-
Hydraulic System Type
PFC (Pressure Flow Compensated)
