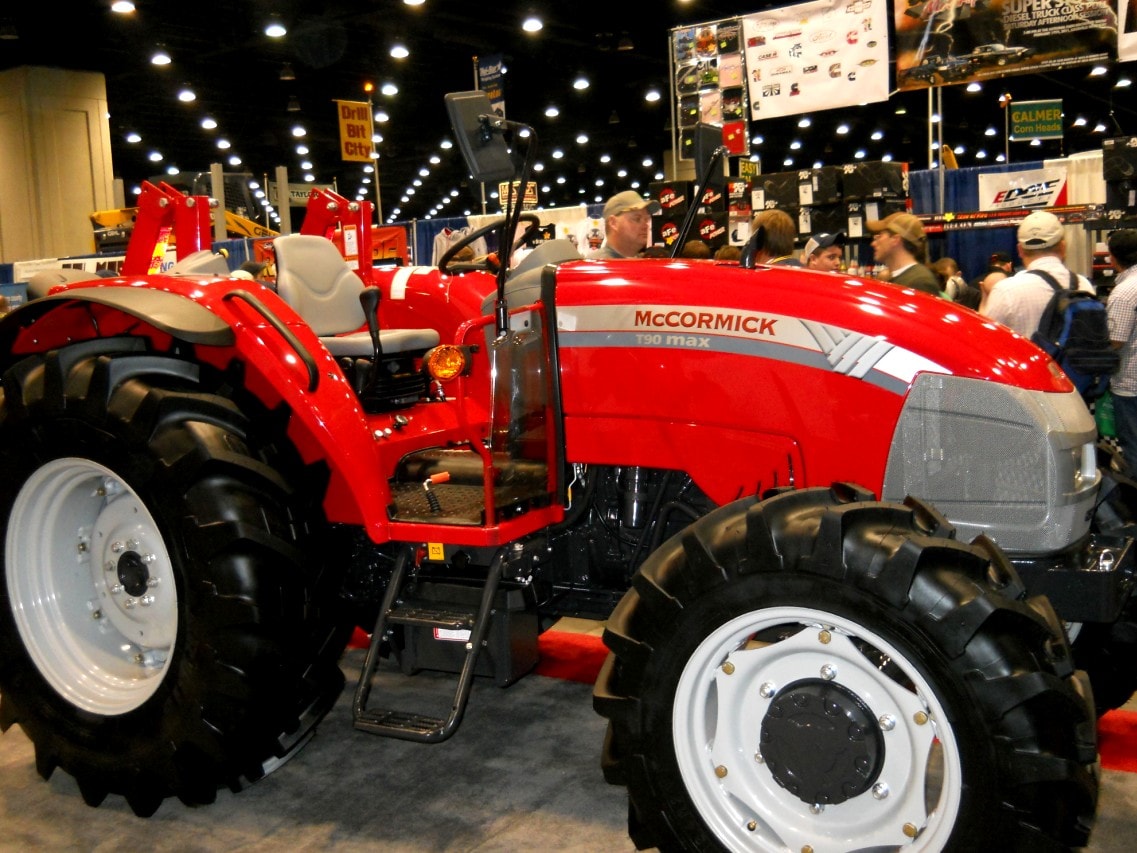

McCormick Intl T90

Last Updated: June 2024

Overview

The McCormick Intl T90 is a tractor model that comes equipped with a 91 hp Perkins 1104D-44T engine that provides substantial power and torque for various agricultural tasks. With a diesel, 4-cylinder, liquid-cooled engine, this tractor also features Tier III emissions compliance, indicating a good balance between performance and environmental consideration. Its engine has a 268.5 cubic inch displacement with a bore and stroke of 4.134 inches by 5.00 inches, and the engine's rated RPM is 2200, with a torque rating of 259.6 lb-ft at 1400 RPM. It has 16 forward and 8 reverse transmission gears likely to offer versatility in handling different types of work. The tractor's steering type is hydrostatic, which generally provides for easier maneuverability. The weight of the tractor is hefty at 11311 pounds, which along with its 65-inch wheelbase, contributes to its stability. The hydraulic system type is an open center, which should deliver consistent hydraulic flow for attachments. It comes standard with a Category II three-point hitch. This tractor's dimensions include a length of 137.8 inches, a width of 66.9 inches, and a varied height with a hood of 50.8 inches or ROPS at 90.6 inches.
Show more...

Key Specifications

Power Output: 91

Operating Weight: 11311

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged (Assumption based on "1104D-44T" model, which is commonly turbocharged)
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
91

Transmission

Type
-
Forward Gears
16
Reverse Gears
8
Total Gears
-

Dimensions

Length (in)
137.8
Width (in)
66.9
Height (in)
90.6 (Height with ROPS)
Operating Weight (lb)
11311

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
Hydrostatic
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Assumption: Both Hood or ROPS suggesting both options available)
Starter Type
-
Brake Type
-
Hydraulic System Type
Open Center
