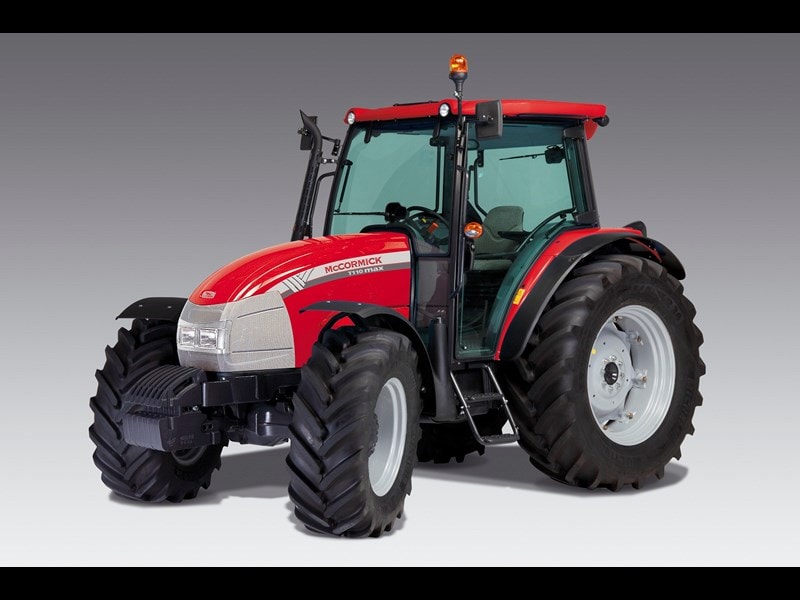

McCormick Intl T110 Max

Last Updated: June 2024

Overview

The McCormick Intl T110 Max is a robust utility tractor designed to deliver a blend of power and versatility for a variety of agricultural tasks. Featuring a 4-wheel drive chassis and an efficient power shuttle transmission with a three-speed power shift, the T110 Max offers 36 forward and 12 reverse gears, which facilitates a wide range of speeds and smooth operation. The heart of the tractor is a turbocharged, liquid-cooled Perkins engine, the 1104D-44T, that delivers 102 horsepower and significant torque at lower RPMs, providing excellent pulling power. With a weight range of 8047 to 8378 pounds, and a notable hydraulic system of the open center type, this tractor is built for durability and consistent performance. The dimensions of the T110 Max, with a wheelbase of 92 inches and a cab height of 101 inches, ensure stable operation and comfort for a variety of farming applications.
Show more...

Key Specifications

Category: Utility

Power Output: 102

Transmission: Power shuttle with three-speed power shift

Drive Type: 4WD

Operating Weight: 8047 (ROPS), 8378 (cab)

Fuel Type: Diesel

Image Gallery

McCormick Intl T110 Max Tractor McCormick Intl T110 Max Tractor McCormick Intl T110 Max Tractor McCormick Intl T110 Max Tractor McCormick Intl T110 Max Tractor McCormick Intl T110 Max Tractor

McCormick Intl T110 Max vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Average
Greater than 57% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1104D-44T
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
268.5
Bore (in)
4.134
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
102

Transmission

Type
Power shuttle with three-speed power shift
Forward Gears
36
Reverse Gears
12
Total Gears
36 forward and 12 reverse

Dimensions

Length (in)
164
Width (in)
83
Height (in)
101 (cab height)
Operating Weight (lb)
8047 (ROPS), 8378 (cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
Three-Point Hitch
Hitch Category
Category 2
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Both ROPS and Cab weights are provided)
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
