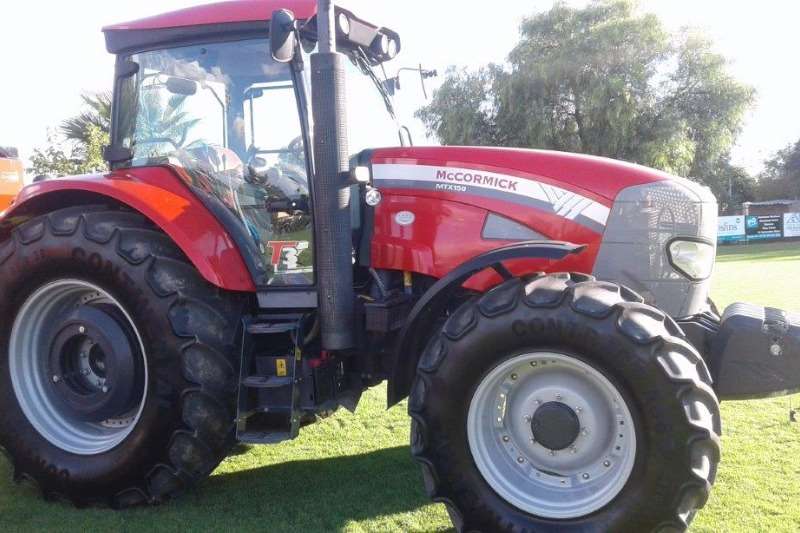

McCormick Intl MTX150

Last Updated: June 2024

Overview

The McCormick Intl MTX150 is a row-crop tractor primarily designed for planting, tilling, and harvesting in agricultural operations. It features a 4x4 MFWD 4WD chassis for optimized traction and stability in diverse field conditions. This model is powered by a 152 hp Iveco turbocharged diesel engine with a 411.9 cubic inch displacement and mechanical injection, making it suitable for heavy-duty tasks. The engine operates at a rated speed of 2200 RPM and delivers a torque of 429.3 lb-ft at 1400 RPM. Steering is facilitated through hydrostatic power, enhancing maneuverability. The tractor's powershift transmission comes with 32 forward and 24 reverse gears, allowing for a wide range of speeds and efficient operation under various loads. The tractor's weight stands at 13582 lbs, and it rolls on agricultural tires sized 16.9R28 at the front and 20.8R38 at the rear. With a length of 203.15 inches and a wheelbase of 107.1 inches, the MTX150 is designed to provide a balance between agility and stability in the field.
Show more...

Key Specifications

Category: Row Crop

Power Output: 152

Transmission: Powershift

Drive Type: 4WD

Operating Weight: 13582

Fuel Type: Diesel

McCormick Intl MTX150 vs. Similar Tractors

Power Output
Average
Greater than 55% of similar tractors.
Operating Weight
Average
Greater than 55% of similar tractors.

Technical Specifications

Engine

Manufacturer
Iveco
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
411.9
Bore (in)
4.094
Stroke (in)
5.197
Rated RPM
2200
Power Output (hp)
152

Transmission

Type
Powershift
Forward Gears
32
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
203.15
Width (in)
-
Height (in)
-
Operating Weight (lb)
13582

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag Front: 16.9R28, Ag Rear: 20.8R38
Manufacture - End Year
-
Hitch Type
-
Hitch Category
III
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric (12 volts)
Brake Type
-
Hydraulic System Type
Pressure flow compensating
