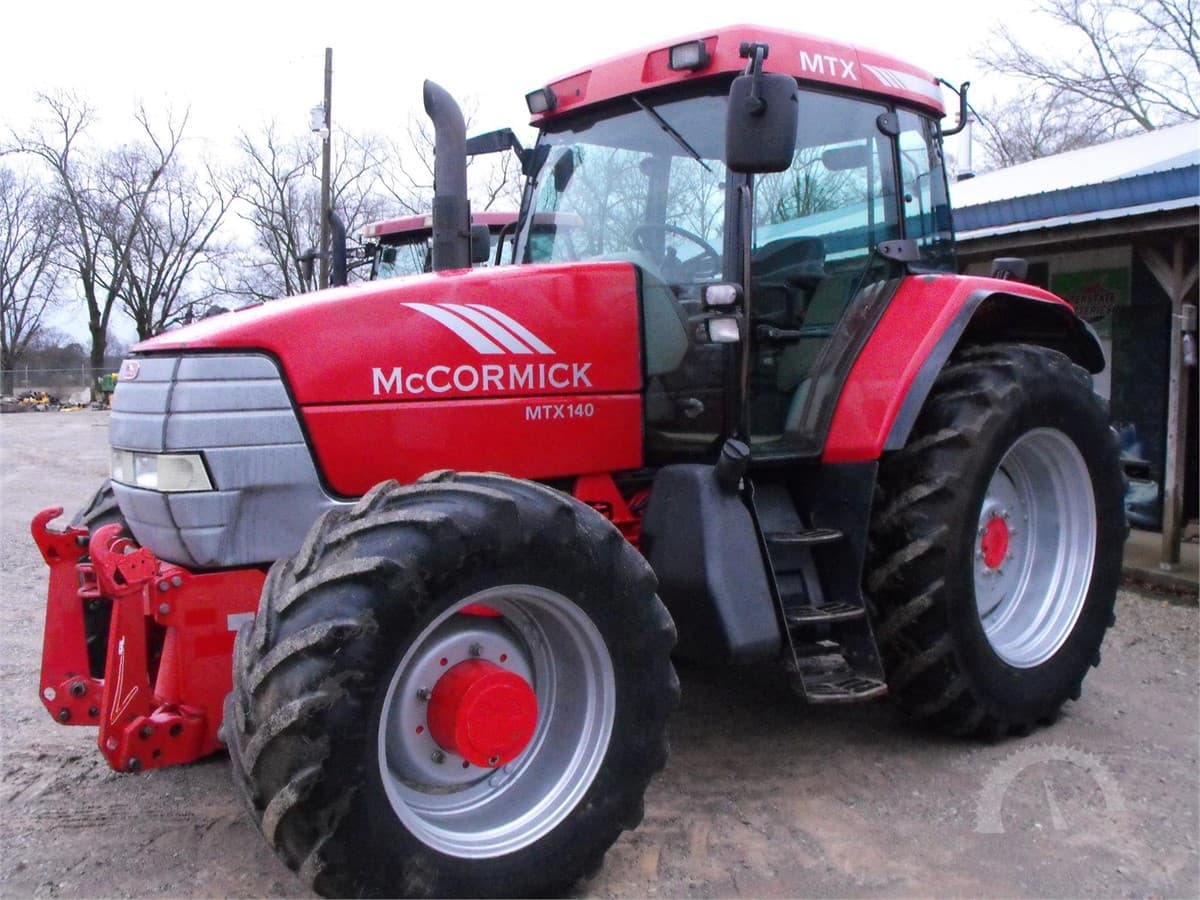

McCormick Intl MTX140

Last Updated: June 2024

Overview

The McCormick Intl MTX140 is a robust row-crop tractor designed to handle a variety of tasks on the farm with ease. Equipped with a reliable Perkins 1006-60T turbocharged diesel engine, it delivers 145 horsepower and has a displacement of 365 cubic inches. The liquid-cooled vertical 6-cylinder power unit operates at an optimal rated RPM of 2200. This tractor features a four-speed power shift transmission with a creeper option, offering 32 forward and 24 reverse speeds, which makes it versatile for different types of fieldwork. The hydrostatic power steering enhances maneuverability, while its 12130-pound operating weight ensures stability during heavy operations. The MTX140’s four-wheel drive chassis and hydraulic system provide the necessary traction and power needed for various agricultural tasks. With a length of 203.2 inches, a width of 90.6 inches, and a height of 115 inches at the cab, this tractor has notable dimensions that contribute to its performance.
Show more...

Key Specifications

Category: Row Crop

Power Output: 145

Transmission: Four-speed power shift with creeper option

Drive Type: 4WD

Operating Weight: 12130 (shipping weight)

Fuel Type: Turbocharged diesel

McCormick Intl MTX140 vs. Similar Tractors

Power Output
Average
Greater than 51% of similar tractors.
Operating Weight
Average
Greater than 47% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
1006-60T
Cooling Type
Liquid-cooled
Cylinder Orientation
Vertical
Valve Configuration
-
Fuel Type
Turbocharged diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
365
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
145

Transmission

Type
Four-speed power shift with creeper option
Forward Gears
32
Reverse Gears
24
Total Gears
-

Dimensions

Length (in)
203.2
Width (in)
90.6
Height (in)
115 (cab height)
Operating Weight (lb)
12130 (shipping weight)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
Pressure flow compensating
