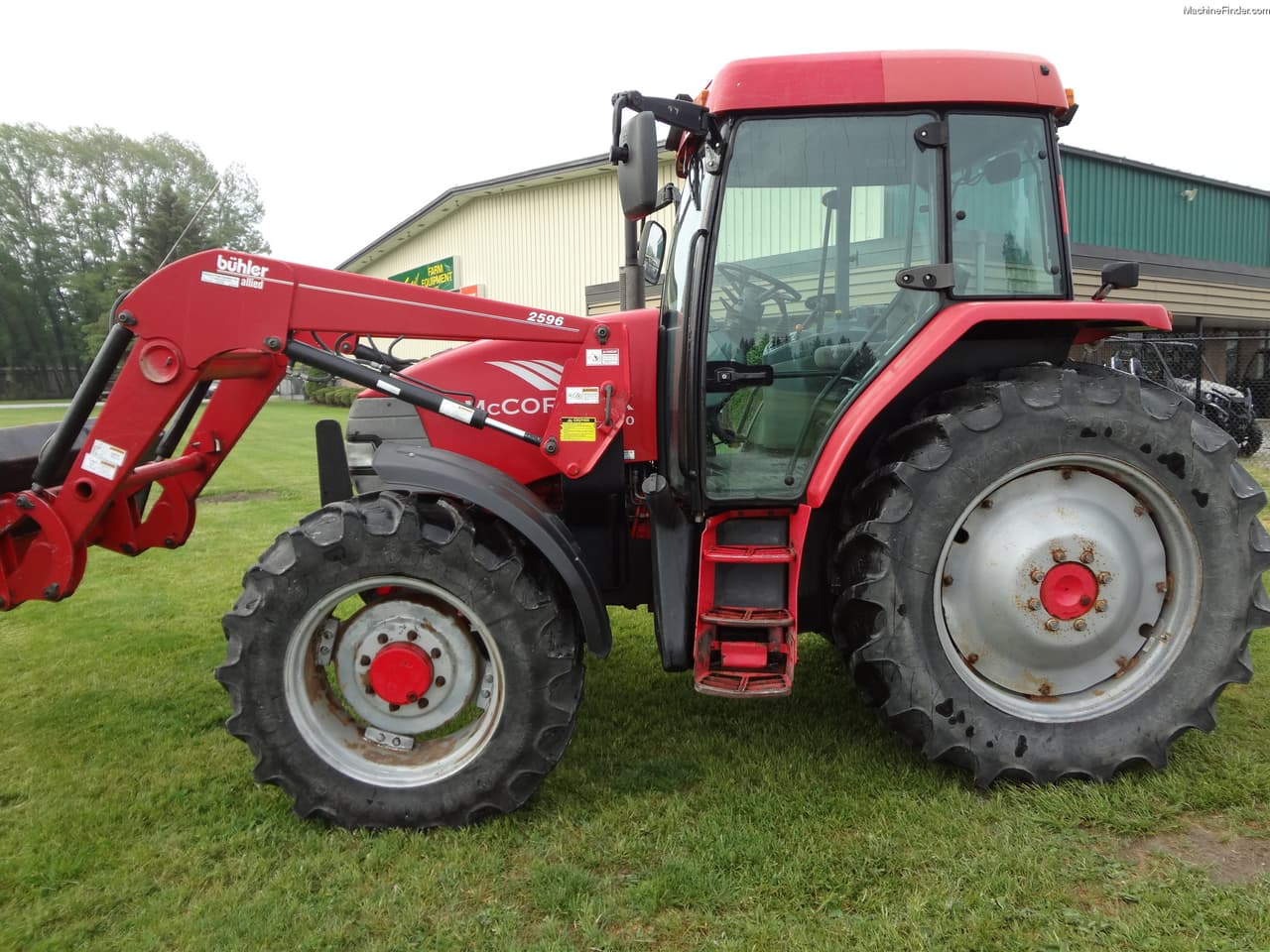

McCormick Intl MC100

Last Updated: June 2024

Overview

The McCormick Intl MC100 is a utility tractor, well-suited for a variety of agricultural tasks. The 4-wheel drive (4WD) and a 4x4 MFWD chassis provide excellent traction and control across unpredictable terrain. It's powered by a turbocharged Perkins diesel engine with 4 cylinders, offering a power output of 102 hp and a torque of 297.3 lb-ft at 1400 RPM. The liquid cooling system ensures the engine operates efficiently. A 16-speed partial power shift transmission, or an alternative 32-forward and 24-reverse gear configuration with creeper, allows the tractor to adapt to different working conditions. The tractor's operating weight ranges from 10,470 to 11,900 pounds, hinting at its robust construction and ability to handle heavy-duty tasks. It features a three-point hitch (Category 3), commonly used for attaching various implements. With a 95.4-inch wheelbase, it provides stability during operations, and its dimensions contribute to good maneuverability, considering its length of 174.5 inches and height with the cab of 109.8 inches.
Show more...

Key Specifications

Category: Utility

Power Output: 102

Transmission: Partial Power Shift

Drive Type: 4WD

Operating Weight: 10470 to 11900

Fuel Type: Diesel

McCormick Intl MC100 vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Excellent
Greater than 93% of similar tractors.

Technical Specifications

Engine

Manufacturer
Perkins
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged with wastegate
Cylinders
4
Displacement (ci)
244
Bore (in)
3.937
Stroke (in)
5
Rated RPM
2200
Power Output (hp)
102

Transmission

Type
Partial Power Shift
Forward Gears
-
Reverse Gears
-
Total Gears
32 forward and 24 reverse

Dimensions

Length (in)
174.5
Width (in)
84.6
Height (in)
109.8 (cab height)
Operating Weight (lb)
10470 to 11900

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
Three-Point Hitch Category III/N (indicated by "IIIN")
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Unknown (Assuming Cab due to "Height (cab)")
Starter Type
Electric (indicated by "Engine - Starter volts: 12")
Brake Type
-
Hydraulic System Type
Axial Piston Pump (Types often refer to an overall system like "Open Center" or "Closed Center"; given type is a component of the system, not the system itself)
