McCormick Intl GM50

Last Updated: September 2024

Overview

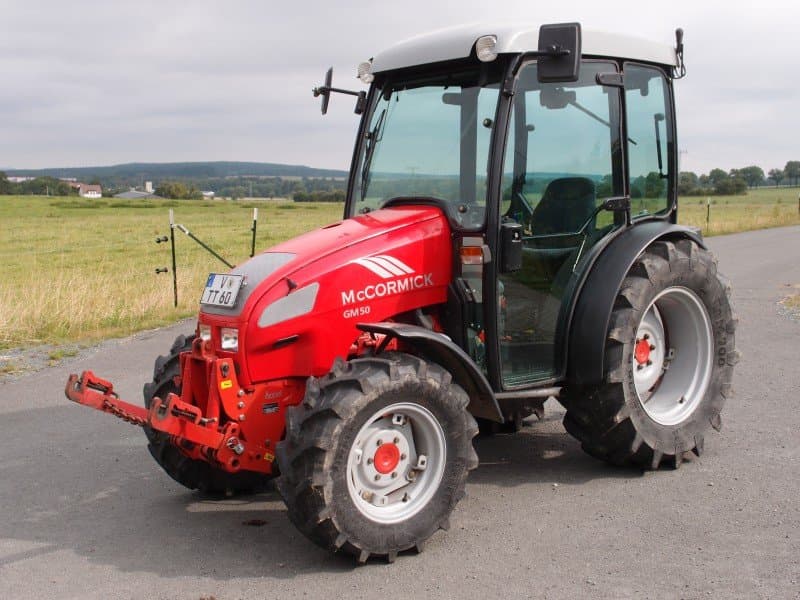

The McCormick International GM50 is a versatile utility tractor built for various farm tasks. It features a strong 4-wheel drive system and a creeper transmission with 16 forward and 16 reverse gears, giving it 32 gears in total. This tractor is powered by a Yanmar 4TNV88 diesel engine with 4 cylinders and 8 valves. The engine produces 47.5 horsepower, which is about average for tractors in its class. It runs at a very high 2800 RPM and has a below-average displacement of 133.6 cubic inches.

The GM50 is compact yet capable, measuring 129.9 inches long and 55 inches wide. It weighs 3197 pounds, making it lighter than many other tractors. The tractor comes with agricultural tires front and rear, and offers good ground clearance of 15.8 inches. It has a Category I hitch for attaching various implements. Farmers can choose between a ROPS (Roll-Over Protective Structure) or a cab for the operator station. The GM50 also meets Tier III emissions standards, showing McCormick's commitment to cleaner farming practices.
Show more...

Key Specifications

Category: Utility

Power Output: 48 hp (35.4 kW)

Transmission: Creeper

Drive Type: 4WD

Operating Weight: 3197 lb (1450 kg)

Fuel Type: Diesel

McCormick Intl GM50 vs. Similar Tractors

Power Output

The Power Output for the McCormick Intl GM50 is Average. It is greater than 46% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the McCormick Intl GM50 is Below Average. It is greater than 28% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the McCormick Intl GM50 is Average. It is greater than 35% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the McCormick Intl GM50 is Excellent. It is greater than 95% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Yanmar
Model
4TNV88
Cooling Type
Liquid-cooled
Valve Configuration
8-valve
Fuel Type
Diesel
Induction Type
Direct injection
Cylinders
4
Displacement
134 ci (2.2 L)
Bore
3.46 in (88.0 mm)
Stroke
3.54 in (90.0 mm)
Rated RPM
2800
Power Output
48 hp (35.4 kW)

Transmission

Type
Creeper
Forward Gears
16
Reverse Gears
16
Total Gears
32

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
