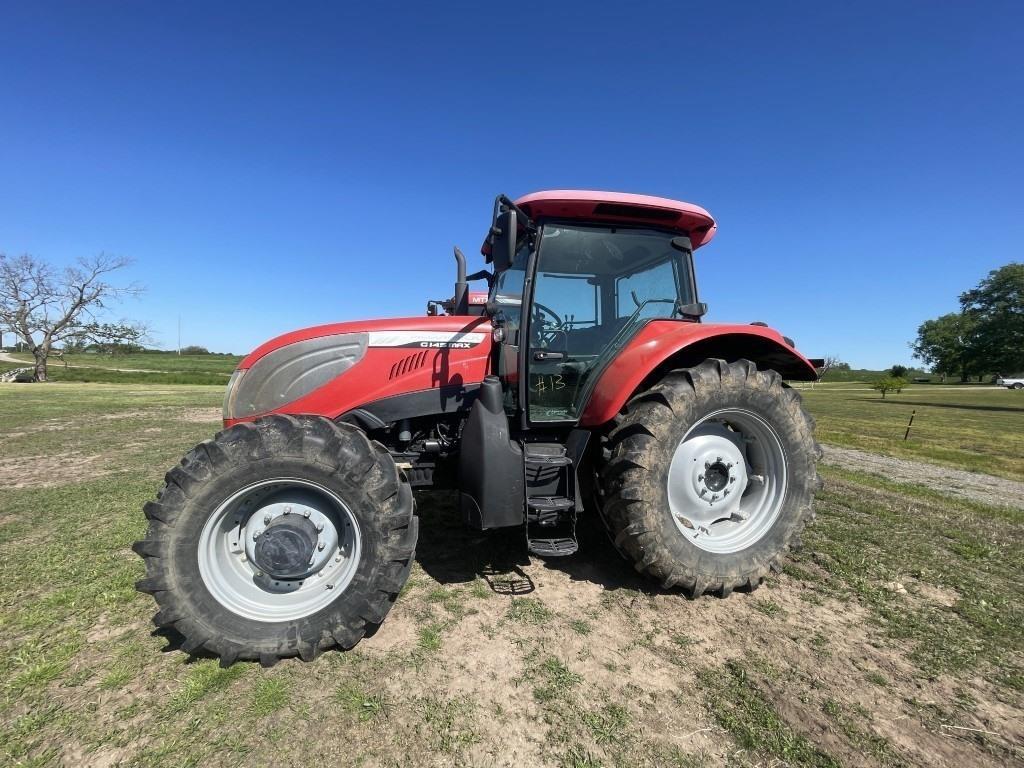

McCormick Intl G145 Max

Last Updated: September 2024

Overview

The McCormick Intl G145 Max is a powerful row crop tractor built for serious farming. It features a 4x4 MFWD chassis with four-wheel drive, making it great for tough field work. The tractor is powered by a 6-cylinder BetaPower diesel engine that produces 141 hp. This engine is turbocharged and intercooled, giving it plenty of muscle for heavy loads.

The G145 Max offers a lot of gears to choose from, with 36 forward and 36 reverse speeds. This helps farmers find just the right speed for any job. The tractor has a strong frame, weighing in at 13,090 lb. It's big too, measuring 214.5 inches long and 110.5 inches tall. The G145 Max uses large ag tires, with 38-inch rear tires for good traction. It also has a Category III/II hitch, which lets it work with many different implements.
Show more...

Key Specifications

Category: Row Crop

Power Output: 141 hp (105.1 kW)

Transmission: Mechanical shuttle

Drive Type: 4WD

Operating Weight: 13090 lb (5938 kg)

Fuel Type: Diesel

McCormick Intl G145 Max vs. Similar Tractors

Power Output

The Power Output for the McCormick Intl G145 Max is Average. It is greater than 51% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the McCormick Intl G145 Max is Average. It is greater than 56% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the McCormick Intl G145 Max is Average. It is greater than 60% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the McCormick Intl G145 Max is Average. It is greater than 58% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
McCormick Intl
Model
BetaPower
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged air-to-air intercooled
Cylinders
6
Displacement
411 ci (6.7 L)
Bore
4.09 in (104.0 mm)
Stroke
5.20 in (132.0 mm)
Rated RPM
2200
Power Output
141 hp (105.1 kW)

Transmission

Type
Mechanical shuttle
Forward Gears
36
Reverse Gears
36

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
