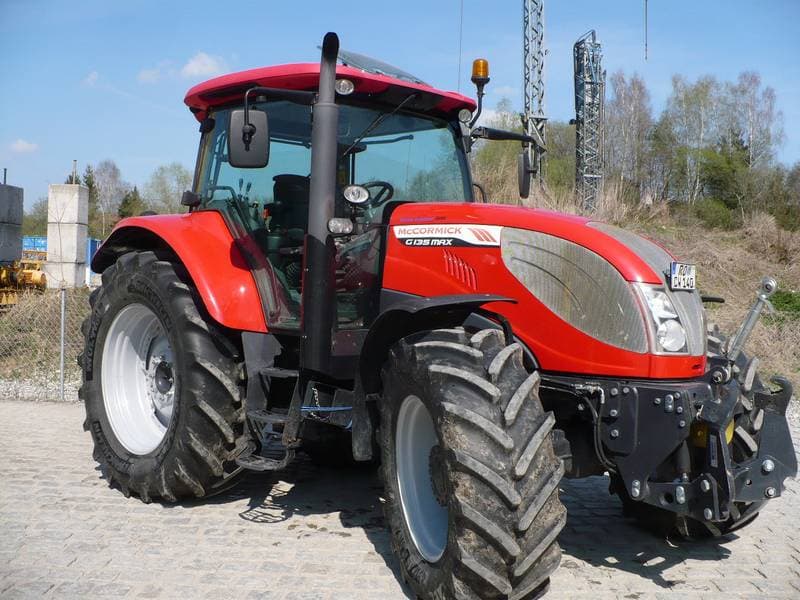

McCormick Intl G135 Max

Last Updated: September 2024

Overview

The McCormick Intl G135 Max is a powerful row crop tractor built for serious farming. It has a 4x4 MFWD chassis and hydrostatic power steering, making it easy to handle in the fields. The tractor comes with a mechanical shuttle transmission that offers 36 forward and 36 reverse gears, giving farmers plenty of options for different tasks.

Under the hood, the G135 Max boasts a BetaPower diesel engine made by McCormick Intl. This 6-cylinder engine is turbocharged and liquid-cooled, providing 133 hp at 2200 RPM. It has an above-average displacement of 410.6 ci, which helps deliver strong performance. The tractor's engine power is about average compared to similar models, while its operating weight of 12,760 lb is also in the middle range. The G135 Max features a three-point hitch at the rear, rated as Category 3, which is suitable for attaching various implements. With its standard agricultural tires and compact size (202.5 inches long, 87 inches wide, and 109 inches tall), this tractor is well-suited for a variety of row crop applications.
Show more...

Key Specifications

Category: Row Crop

Power Output: 133 hp (99.2 kW)

Transmission: Mechanical shuttle

Drive Type: 4WD

Operating Weight: 12760 lb (5788 kg)

Fuel Type: Diesel

McCormick Intl G135 Max vs. Similar Tractors

Power Output

The Power Output for the McCormick Intl G135 Max is Average. It is greater than 46% of similar Row Crop tractors in our database.

Horsepower distribution of Row Crop tractors

(across 1.1K+ tractors in our database)

Operating Weight

The Operating Weight for the McCormick Intl G135 Max is Average. It is greater than 53% of similar Row Crop tractors in our database.

Operating weight distribution of Row Crop tractors

(across 1.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the McCormick Intl G135 Max is Average. It is greater than 60% of similar Row Crop tractors in our database.

Engine displacement distribution of Row Crop tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the McCormick Intl G135 Max is Average. It is greater than 58% of similar Row Crop tractors in our database.

Engine rated RPM distribution of Row Crop tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
McCormick Intl
Model
BetaPower
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Turbocharged air-to-air intercooled
Cylinders
6
Displacement
411 ci (6.7 L)
Bore
4.09 in (104.0 mm)
Stroke
5.20 in (132.0 mm)
Rated RPM
2200
Power Output
133 hp (99.2 kW)

Transmission

Type
Mechanical shuttle
Forward Gears
36
Reverse Gears
36

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
