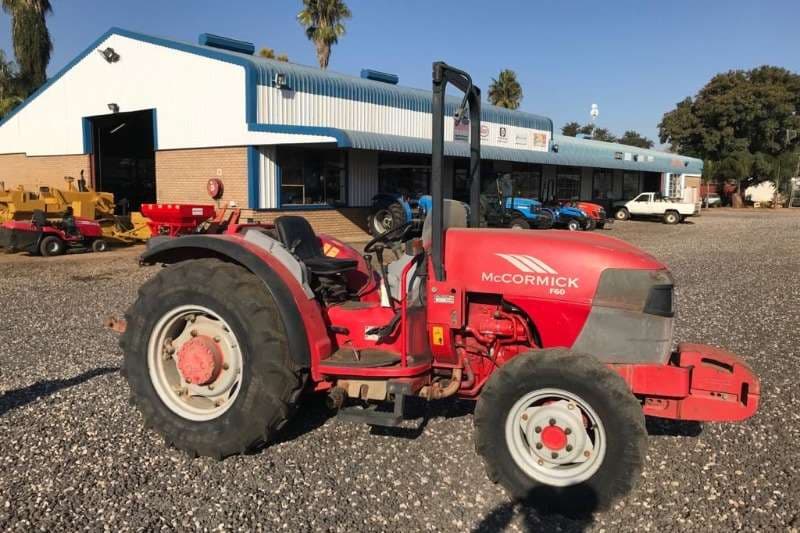

McCormick Intl F60

Last Updated: September 2024

Overview

The McCormick International F60 is a compact tractor designed for orchards and vineyards. It's a 2-wheel drive model with power steering, making it easy to maneuver in tight spaces. The F60 has a Perkins diesel engine with 3 cylinders and liquid cooling. This engine produces 55 horsepower, which is below average for tractors but suitable for its specialized use.

The F60 features a sync shuttle transmission with 24 forward and 12 reverse gears, giving operators plenty of options for different tasks. It has a Category II/I hitch, allowing it to work with various implements. The tractor's hydraulic system is open center type, and it has an electric starter for easy ignition. Additional features include a dual dry element air cleaner and impressive torque of 142.4 lb-ft at 1200 RPM. While its engine displacement is relatively low, its rated RPM is above average at 2300, balancing power and efficiency for orchard and vineyard work.
Show more...

Key Specifications

Category: Orchard/Vineyard

Power Output: 55 hp (41.0 kW)

Transmission: Sync Shuttle

Drive Type: 2WD

Fuel Type: Diesel

McCormick Intl F60 vs. Similar Tractors

Power Output

The Power Output for the McCormick Intl F60 is Below Average. It is greater than 26% of similar Orchard/Vineyard tractors in our database.

Horsepower distribution of Orchard/Vineyard tractors

(across 0.3K+ tractors in our database)

Engine Displacement

The Engine Displacement for the McCormick Intl F60 is Below Average. It is greater than 23% of similar Orchard/Vineyard tractors in our database.

Engine displacement distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the McCormick Intl F60 is Average. It is greater than 65% of similar Orchard/Vineyard tractors in our database.

Engine rated RPM distribution of Orchard/Vineyard tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Perkins
Cooling Type
Liquid
Fuel Type
Diesel
Cylinders
3
Displacement
165 ci (2.7 L)
Bore
3.74 in (95.0 mm)
Stroke
5.00 in (127.0 mm)
Rated RPM
2300
Power Output
55 hp (41.0 kW)

Transmission

Type
Sync Shuttle
Forward Gears
24
Reverse Gears
12

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
